Double Car Parking System Vertical Vehicles Storage 2 Level Parking Lift

Double Car Parking System Vertical Vehicles Storage 2 Level Parking Lift

  • High Light

    Double Decker Parking Lift

    ,

    Vertical Double Car Parking System 2300kg

    ,

    2.2kW Double Car Parking System

  • Type
    PJS Two Post Parking Lift
  • Body Material
    Steel
  • Dive Mode
    Hydraulic/motor Drive
  • Lifting Capacity
    ≤2300kg, 2700kg, 3200kg
  • Motor Power
    2.2kW
  • Car Size
    Upper:≤5000mm*1850mm*1550mm Grounding:≤5000mm*1850m*1550mm
  • Rise/drop Time
    60s/70s
  • Noise
    ≤65db
  • Power Supply
    220 V/380 V, 50 Hz/60 Hz, 1 Ph / 3Ph, 2.2 Kw
  • Operation Mode
    Automatic/Manual
  • Lifting Height
    1800mm, 2100mm
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PJS
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

Double Car Parking System Vertical Vehicles Storage 2 Level Parking Lift

Two Post Car Parking Lift



Description

Two Post parking lift, home two-post three-dimensional parking equipment has a total of two empty parking spaces above and below. The lower level vehicles can enter and exit at will, if you want to park the upper level vehicles, you must first drive the lower level vehicles out.


  •  Mini two level two post parking lift has many advantages, such as high parking density, low requirements on the site, low noise, simple structure, convenient use, fast exit speed and no cover on the ground, which greatly increases the ground efficiency. It makes the limited space allowed for multiple parking of vehicles.

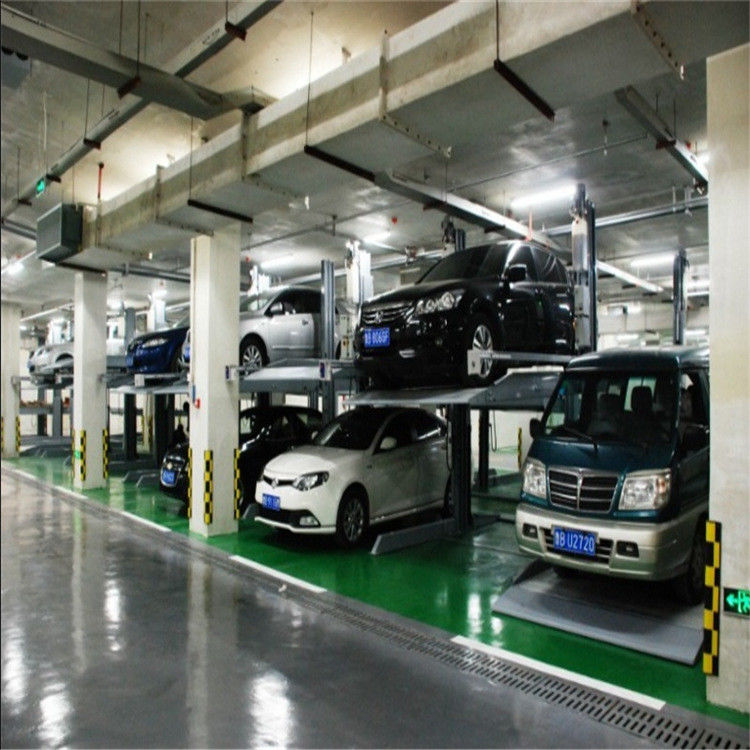

  • The two level two post parking lift shown as below photo is simple, compact and economical, and is controlled by PLC. Multi-operation , convenient vehicle access, flexible layout, energy saving, 220v power supply. So it not only suitable for large garages, parking lots, but also can used for various home users.



Characteristics

Two stage dual-cylinder lifting system, hydraulic direct driven, chain-balancing system;
Electric or manual lock release system; multi-levels locking devices (3 or 5 holes);
Adjustable parking heights, optional remote control;
Optoelectronic switch device (prevent people or car miss-entrance during operation);
Nice appearance of electric powder coating (color optional) or hot dipped galvanized surface treatment;
Optional galvanized wave platform or diamond plate;
Buzzer and warning light flashing during operation;
The control button can choose long time press or jog buttons;
High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.
Suitable for commercial and residential use.


Product Specification



Lifting capacity 2700kg 2300kg
Lifting height 2100mm 2100mm
Usable platform width 2100mm 2100mm
Power pack 2.2Kw hydraulic pump 2.2Kw hydraulic pump
Available voltage of power supply 100V-480V, 1 or 3 Phase, 50/60Hz 100V-480V, 1 or 3 Phase, 50/60Hz
Operation mode Key switch Key switch
Operation voltage 24V 24V
Safety lock Dynamic anti-falling lock Dynamic anti-falling lock
Lock release Electric auto release Electric auto release
Rising / descending time <55s <55s
Finishing Powdering coating Powder coating



Double Car Parking System Vertical Vehicles Storage 2 Level Parking Lift 0





Products advantages

1. Equipment rise height of 2100 mm, lifting weight of 2300-3200 kg, suitable for parking cars.
2. The size of the equipment can be individually customized according to the customer's requirements
3. Hydraulic drive and chain balance to ensure smooth operation of the equipment.
4. The carrier plate adopts fully enclosed design to avoid oil leakage and pollution of the lower level of the vehicle.
5. The structure of the equipment is all laser-cut, beautiful, easy to install and maintain; the columns can be shared between the equipment, saving costs and land area.
6. Can be widely used in hotels, enterprises and public institutions and residential areas and other types of places.




As you know there are limited spaces available in traffic congested city areas so it's really tough to park the vehicles in right way.  we offer a wide range of reliable car parking systems which will help you to solve out the parking problems and provide you with right parking solution which you are looking for.
The company deals in providing end to end solution in Car Parking segment whether its Car Parking – Hydraulic or Automatic Systems, Stack Parking, Parking Elevator, Boom Barrier, Parking Savers etc. We are engaged in offering Multi Level, Automated Car Parking Solutions to all the residential and commercial buildings and our team of experts supervise in compliance with international standards and have excellent quality.





FAQ

Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.



Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.



Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.

Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.



Q: How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q: How to repair and maintain the product?

A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.



Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?

A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.

Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
