PSH Double Decker Parking System Two Levels 2 Story Car Lift

PSH Double Decker Parking System Two Levels 2 Story Car Lift

  • High Light

    PSH Double Decker Parking System

    ,

    2000kg Double Decker Parking System

    ,

    two levels 2 story car lift

  • Type
    PSH 2 Levels Mechanical Puzzle Parking System
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Material
    Steel
  • Model Number
    PSH2
  • Dive Mode
    Hydraulic
  • Certification
    CE ISO9001
  • Car Size (LxWxH)
    5000*1850*2050(SUV)/1550(sedan)mm
  • Loading Capacity
    2000kg
  • Motor Power
    4kW
  • Lifting Speed
    8-12m/min
  • Sliding Motor Power
    0.2kW
  • Sliding Speed
    8m/min
  • Operation Mode
    Touch Screen / Push Button Or IC Card
  • Power Supply
    380V/50HZ 3 Phase 5 Wires
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PSH
  • Minimum Order Quantity
    5 piece
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

PSH Double Decker Parking System Two Levels 2 Story Car Lift

2 levels hydraulic puzzle car parking system​



Work Principle


There are 2 levels of upper and down spaces. The car can go into and out of the down level spaces directly by lifting and sliding movement. When the space in the ground level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.
Usually on ground or basement parking solutions.


Characteristics

  • OEM service, it can be built according to the customer requirements and dimensions.
  • Complete safety protection functions
  • Simple and practical structure and appearance
  • Safe and fast operation
  • The front pillar can be removed for a convenience of going in and out.
  • PLC automated control design for easy maintenance and malfunctions removal easily
  • Low cost, easy maintenance
  • Simple demand of earthwork, Wide applicability, can be arranged and combined according to variety landform and extensity suitable for construction and reconstruction of up ground and underground garage



Main Structure



  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • Hydraulic system
  • PLC control system
  • Safe-guard system

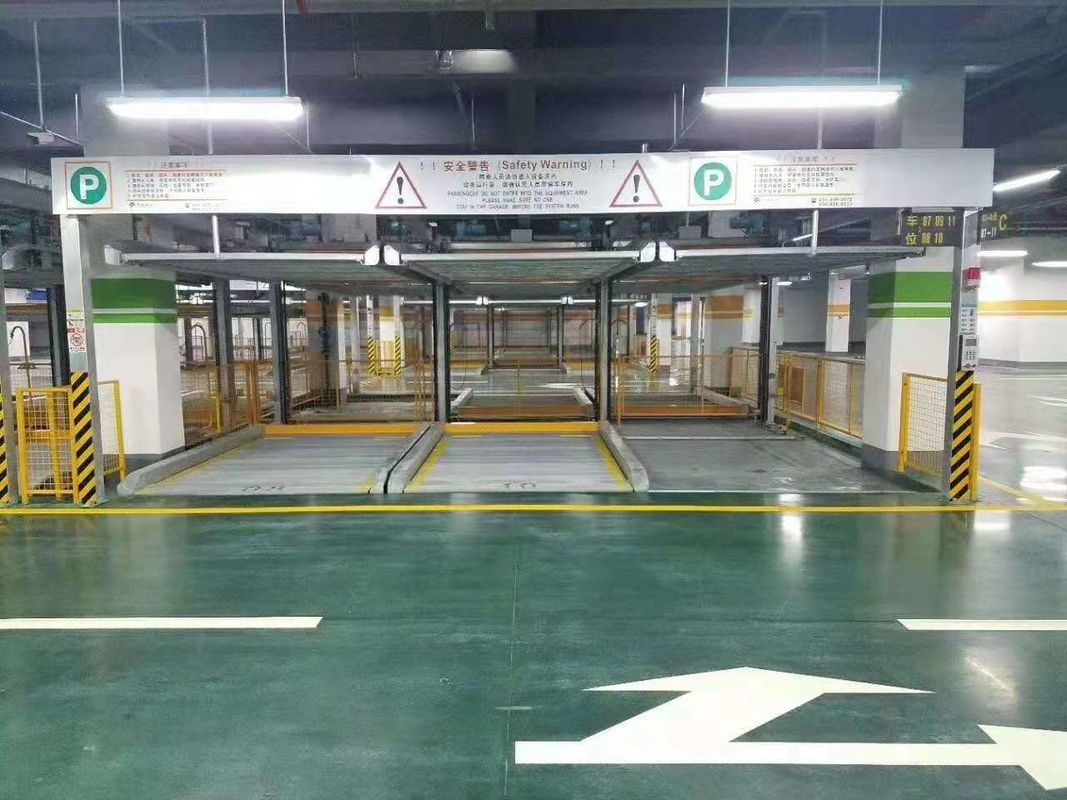

PSH Double Decker Parking System Two Levels 2 Story Car Lift 0

PSH Double Decker Parking System Two Levels 2 Story Car Lift 1





Technical Parameters



Item Parameters
Drive Mode Hydraulic drive
Levels of system 2
Size of car
(L*W*H)
5000*1850*1550mm
5000*1850*2050mm
Car Weight 2000kg
Operation Mode Auto IC card/ Manual button
Lifting motor power 4KW
Lifting speed 8-12M/MIN
Sliding motor power 0.2KW
Sliding speed 8M/MIN
Control Method Touch screen / Push button or IC card
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
Safety devices Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection,
Malfunction indication Computer malfunction diagnosis, human-computer communication information display
Parts appearance
treatment
Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and
out
Forwarding in and forwarding out;
