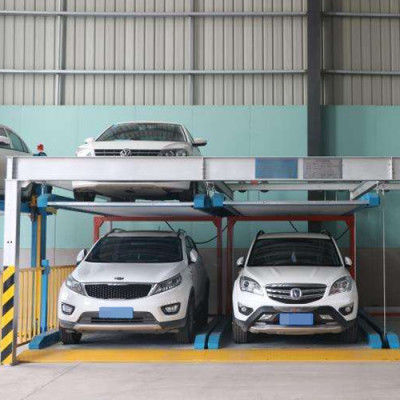

2 levels steel rope puzzle car parking system
Work Principle
There are 2 levels of upper and down spaces. The car can go into and out of the down level spaces directly by lifting and sliding movement. When the space in the ground level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.
Usually on ground or basement parking solutions.
Characteristics
- OEM service, it can be built according to the customer requirements and dimensions.
- Complete safety protection functions
- Simple and practical structure and appearance
- Safe and fast operation
- The front pillar can be removed for a convenience of going in and out.
- PLC automated control design for easy maintenance and malfunctions removal easily
- Low cost, easy maintenance
- Simple demand of earthwork, Wide applicability, can be arranged and combined according to variety landform and extensity suitable for construction and reconstruction of up ground and underground garage
- Famous for "safety and convenience", with perfect safety device and control system, simple structure, standardized design, scale production, fast installation, mature operation.
- Stable and mature technology, low failure rate, low maintenance cost, solid structure, cost-effective.
Main Structure
- Steel structure
- Car Pallet
- Lifting system
- Sliding system
- Hydraulic system
- PLC control system
- Safe-guard system
Technical Parameters
| Item |
Parameters |
| Drive Mode |
steel rope |
| Levels of system |
2 |
Size of car
(L*W*H) |
5000*1850*1550mm
5000*1850*2050mm |
| Car Weight |
2000kg |
| Operation Mode |
Auto IC card/ Manual button |
| Lifting motor power |
4KW |
| Lifting speed |
8-12M/MIN |
| Sliding motor power |
0.2KW |
| Sliding speed |
8M/MIN |
| Control Method |
Touch screen / Push button or IC card |
| Parking way |
Forward in, Back out |
| Electricity |
3 phases 5 wires, 380V, 50HZ |
| Safety devices |
Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection, |
| Malfunction indication |
Computer malfunction diagnosis, human-computer communication information display |
Parts appearance
treatment |
Hot spray galvanized treatment and high-grade anti-corrosion painting |
| Controller |
PLC, with control monitoring, IC card, manual and operative panel; |
Way of parking in and
out |
Forwarding in and forwarding out; |
