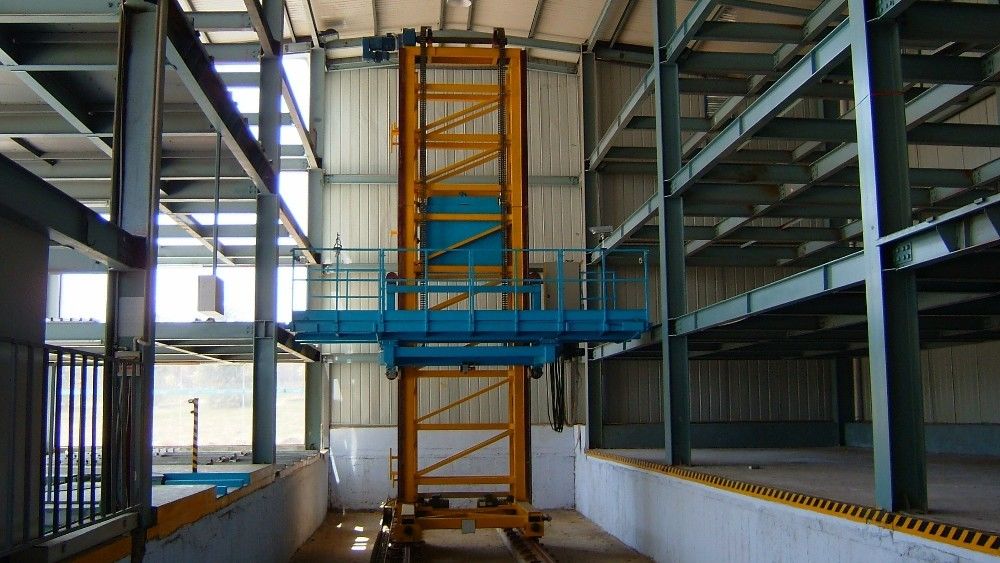

PXD Full mechanical steel structure design aisle-stack car parking system
Product Description
The parking equipment of warehouse aisle stack adopts the technology of PARKROBT parking robot transporter without platform plate, it has low requirements for height, high technical content with high intelligence. It has automatic centering device, safe, reliable, high degree of automation, high efficiency of access car. Depending on the site, it can be set outdoors (generally fully enclosed), indoors, on the ground or underground. At the same time, the equipment also requires relatively independent storage space, no interference from other equipment. Between 50 and 100 vehicles are suitable for a roadway stacker and transporter. According to the specific use area of different garages, usually choose about five floors is more appropriate.
Working principle
When to store a car, the car is parked on the platform at the entrance of the parking lot. The detection device at the entrance of the vehicle can park the vehicle on the parking floor of different heights by detecting the length, the width, the height data of the vehicle.The comb gear parking robot moves underneath the vehicle and takes the car to the transporter using the comb gear cross action. It moves underneath the vehicle and moves it to a stacker, then uses a carrying trolley to park the car in a specific parking space.
When picking up the car, the user swipes his card or makes a reservation through the APP at the exit of the parking lot, and the system sends instructions to the parking robot. After receiving the command, the parking robot moves to the position of the storage frame, and uses the comb gear cross action to take the car from the storage frame to the transporter.Then, through a series of actions, the car is moved to the roadway stacker, and finally the car is conveyed to the exit entrance of the parking lot and turned to the direction of exit, so that users can pick up the car conveniently.
Each layer has a carrying trolley; the trolley will carry the car on this floor to the parking space or put it on the car elevator to realize parking or retrieving.
CE Stacker Car Parking System Lift 5 Layers Steel Structure 0
1. Full automatic, safe and reliable with high efficiency to park or retrieve a car;
2. Space saving and adaptable more sites of parking;
3. Suitable at ground or underground area for more parking demands;
Structure (Optional)

Structure of PPY automatic parking system can be steel structure made by the system producer also can be concrete floors made locally by the buyer. It is optional, but the concrete floor must be made according to producer design and dimension requirements.

This project offer is full mechanical steel structure design;


Technical Parameters


Item Parameters
Model PXD
Levels of system 5
Spaces Based on requirements
Size of car (L*W*H) 5300*1900*1550mm
Weight of car 2350kg
Motor Power of stacker Lift 15kw
Slide 5.5kw
Carrier 1.5kw
Turning 2.2kw
Speed Lift 60m/min Frequency control
Slide 30m/min Frequency control
Vertical shift 40m/min Frequency control
Turn 3.0rpm Frequency control
Control Method Touch screen / Auto IC card / Button Manual
Parking way Forward in, Forward out
Electricity 3 phases 5 wires, 380V, 50HZ
