Four Floors Auto Stacker Car Lift Hydraulic Garage Car Elevator

Four Floors Auto Stacker Car Lift Hydraulic Garage Car Elevator

  • High Light

    Four Floors auto stacker car lift


    PJS auto stacker car lift


    hydraulic garage car elevator lift

  • Type
    Four Floors Four Post Four Cars Parking Lift
  • Place Of Origin
    Shanghai, China
  • Brand Name
  • Material
  • Dive Mode
    Hydraulic Drive
  • Certification
    CE ISO9001
  • Motor Power
  • Mode Of Operation
    Manual Button
  • Weight Of Car
    2500kg Max
  • Operation Mode
    Manual Button
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

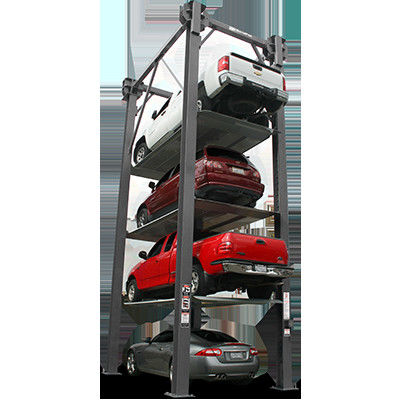

Four Floors Auto Stacker Car Lift Hydraulic Garage Car Elevator

Four Floors 4 Post 4 Cars Parking Lift


As the name implies through the lifting of a number of car carrying board to achieve access to the car process.This kind of three-dimensional parking garage can be built up to four storeys with three car carrying boards.The biggest characteristic is to need manual operation, take the car above, the car below need to drive away first.This 4-floor simple lifting stereo garage exported to the United States is a simple, effective, efficient and safe parking solution driven by hydraulic system and wire rope.With safety and anti-falling devices, columns can be shared to reduce construction costs.


Work Principle


This system is designed with 4 floors to park 4 cars. There are 3 full closed pallets with slopping entrance edges for cars driving in. When parking, all pallets fall down to the ground, the car will park into the top floor first, then top car lift up to position; the second car parks into the middle pallet and lift up to position again; then the third car parks into the bottom pallet and lift up to position; the forth car parks into the ground finally. When retrieving, reverse the steps; Only one by one parking or retrieving; 4 cars will belong to 1 owner or 1 operator. It is mostly used for storage of car sales center.


It is also only 3 floors with 2 full closed pallets to park 3 cars;


Four Floors Auto Stacker Car Lift Hydraulic Garage Car Elevator 0





  •  It saves the land area and takes full use of the space area.
  •  It can be designed with shared columns for more sets to raise the parking numbers of cars.
  •  Hydraulic cylinder lift with high safety and green environment protection.
  •  Pallets are full closed design to avoid leakage.
  •  Designed with guide rail structure to guarantee low noise and steady operation.


Adapted places


It is widely used for public parking lots, car dealer shops, car manufacturers, and car logistic companies.




  • Hydraulic cylinder fixed stroke control, never over-going, never accident; Motor type easy accident when sensors wrong;
  •  Double faster speed than motor chain type; Quick parking and retrieving in rush hours.
  •  Best safety guarantee, sensors, photocells, for all possible detection; Patent safety frame last protection on each pallet;
  • Saving electricity without consumption of power when falling.
  • Easy maintenance, saving much maintenance cost;
  • Low noise, almost silence during operation;
  • Full galvanized treatment and most patents design for long-life guarantee.
  • No. 1 Sales and biggest parking factory in China with best advanced equipments for quality guarantee.


Four Floors Auto Stacker Car Lift Hydraulic Garage Car Elevator 1



Technical Parameters


Item Parameters
Name Four Floors Four Post Four Cars Parking Lift
Mode of drive Hydraulic
Net height of system 7500mm min
Car size 5000*1850*1550 (mm)
Weight of car 2500kg max
Motor power 7.5kw
Noise 65dB
Operation mode Manual
Parking way Forward or backward both OK
