Full automatic safe and reliable PXD stacker car parking system

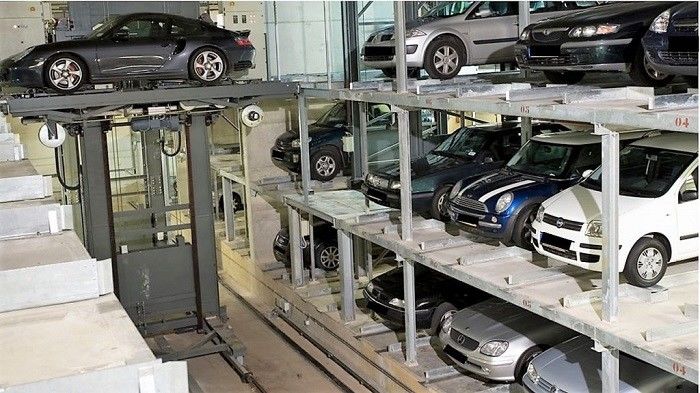

Working principle
Each layer has a carrying trolley; the trolley will carry the car on this floor to the parking space or put it on the car elevator to realize parking or retrieving.
Product Description
1. This full automatic plane moving parking system adopts wheels clamped mode;
2. It is designed with 1 set of mechanical parking system, 1 entrance and 1 lifter;
3. The parking project designed with 1 sliding trolley, 1 carrying cart;
4. Control: Central control room with PLC auto control system;
5. Mode of operation: ID card auto mode / Screen touching auto mode/ Button manual mode;
6. Supervision monitoring system: Closed monitoring system, (Control all parking system in the central control monitoring room); LED guiding monitor can show all orders and signals, such as over length, over width, over height, car position, operation moving process;
7. All car will be at ground level parking or retrieving by full automatically moving;
Characteristics
1. Full automatic, safe and reliable with high efficiency to park or retrieve a car;
2. Space saving and adaptable more sites of parking;
3. Suitable at ground or underground area for more parking demands;
Structure (Optional)
Structure of PPY automatic parking system can be steel structure made by the system producer also can be concrete floors made locally by the buyer. It is optional, but the concrete floor must be made according to producer design and dimension requirements.
This project offer is full mechanical steel structure design;
Technical Parameters
| Item |
Parameters |
| Model |
PXD |
| Levels of system |
6 |
| Spaces |
Based on requirements |
| Size of car (L*W*H) |
5300*1900*1550mm |
| 5300*1900*2050mm |
| Weight of car |
2350kg |
| Motor Power of stacker |
Lift |
15kw |
| Slide |
5.5kw |
| Carrier |
1.5kw |
| Turning |
2.2kw |
| Speed |
Lift |
60m/min Frequency control |
| Slide |
30m/min Frequency control |
| Vertical shift |
40m/min Frequency control |
| Turn |
3.0rpm Frequency control |
| Control Method |
Touch screen / Auto IC card / Button Manual |
| Parking way |
Forward in, Forward out |
| Electricity |
3 phases 5 wires, 380V, 50HZ |
