Steel Two Post Hydraulic Car Parking System Vertical Vhicles Storage 2.2kW

Steel Two Post Hydraulic Car Parking System Vertical Vhicles Storage 2.2kW

  • High Light

    Hydraulic Steel Two Post Parking Lift


    Vertical Hydraulic Car Parking System


    2.2kW Car Parking Lift

  • Type
    PJS Two Post Parking Lift
  • Body Material
  • Dive Mode
    Hydraulic/motor Drive
  • Lifting Capacity
    ≤2300kg, 2700kg, 3200kg
  • Motor Power
  • Car Size
    Upper:≤5000mm*1850mm*1550mm Grounding:≤5000mm*1850m*1550mm
  • Rise/drop Time
  • Noise
  • Power Supply
    220 V/380 V, 50 Hz/60 Hz, 1 Ph / 3Ph, 2.2 Kw
  • Operation Mode
  • Lifting Height
    1800mm, 2100mm
  • Platform
    Galvanized Wave Platform
  • Surface Treatment
    High-grade Anti-corrosion Powder Coating
  • Color
    Red, Blue, Grey, Yellow, Black, Etc. (Customized )
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

Steel Two Post Hydraulic Car Parking System Vertical Vhicles Storage 2.2kW

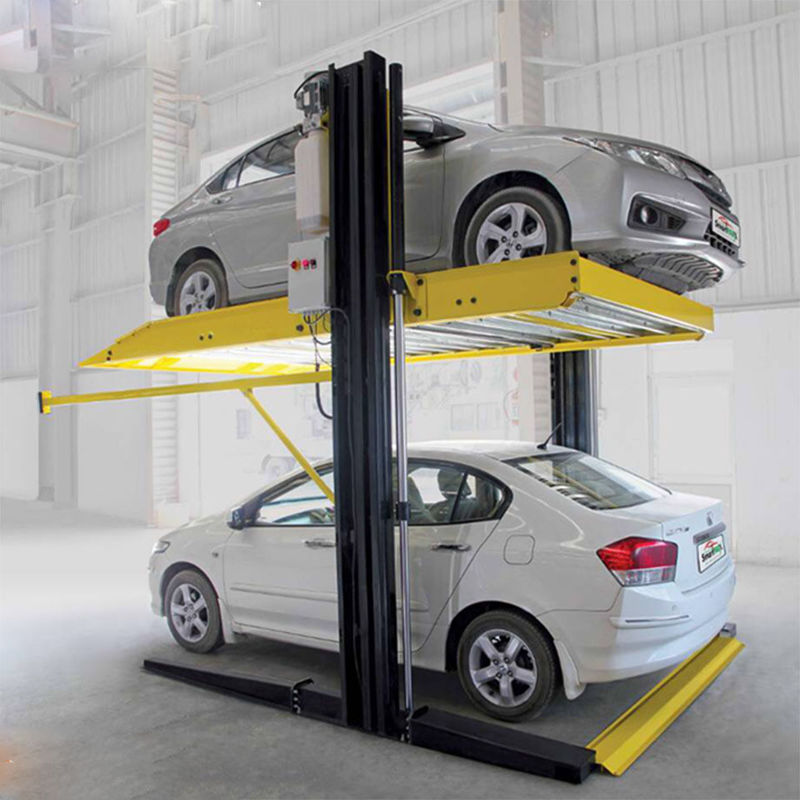

Mini Two Post Car Parking Lift


Two Post Car Parking Lift is composed of two columns and one car pallet, and the hydraulic system and electrical system are placed on the equipment column. The car pallet lifting is driven by hydraulic cylinder to achieve. The front end of the column is equipped with an operation button box to control the lifting and lowering of the car pallet. In order to prevent the upper car pallet parking slip, there is an anti-fall device on the column, when the car pallet is moving, anti-fall device open, anti-fall hook rise and fall without obstacles, can be free up and down movement, complete the lifting of the car pallet. When the car pallet rises into place and stops moving, the anti-fall solenoid opens and the triangular anti-fall block on the board falls in the long slot on the column to stop the board from slipping.


Two Post parking lift, home two-post three-dimensional parking equipment has a total of two empty parking spaces above and below. The lower level vehicles can enter and exit at will, if you want to park the upper level vehicles, you must first drive the lower level vehicles out.




Simple operation

Safe and reliable

Convenient in and out of car

Ultra low noise

Small space occupation

Beautiful and fashionable in appearance

Easy and fast installation

Both suitable for home use and public use

 Product Specification


Lifting capacity 2700kg 2300kg
Lifting height 2100mm 2100mm
Usable platform width 2100mm 2100mm
Power pack 2.2Kw hydraulic pump 2.2Kw hydraulic pump
Available voltage of power supply 100V-480V, 1 or 3 Phase, 50/60Hz 100V-480V, 1 or 3 Phase, 50/60Hz
Operation mode Key switch Key switch
Operation voltage 24V 24V
Safety lock Dynamic anti-falling lock Dynamic anti-falling lock
Lock release Electric auto release Electric auto release
Rising / descending time <55s <55s
Finishing Powdering coating Powder coating

Steel Two Post Hydraulic Car Parking System Vertical Vhicles Storage 2.2kW 0



Products advantages

Two stage dual-cylinder lifting system, hydraulic direct driven, chain-balancing system;

Electric or manual lock release system; multi-levels locking devices (3 or 5 holes);

Adjustable parking heights, optional remote control;

Optoelectronic switch device (prevent people or car miss-entrance during operation);

Nice appearance of electric powder coating (color optional) or hot dipped galvanized surface treatment;

Optional galvanized wave platform or diamond plate;

Buzzer and warning light flashing during operation;

The control button can choose long time press or jog buttons;

High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.

Suitable for commercial and residential use.


As you know there are limited spaces available in traffic congested city areas so it's really tough to park the vehicles in right way.  we offer a wide range of reliable car parking systems which will help you to solve out the parking problems and provide you with right parking solution which you are looking for.
The company deals in providing end to end solution in Car Parking segment whether its Car Parking – Hydraulic or Automatic Systems, Stack Parking, Parking Elevator, Boom Barrier, Parking Savers etc. We are engaged in offering Multi Level, Automated Car Parking Solutions to all the residential and commercial buildings and our team of experts supervise in compliance with international standards and have excellent quality.




Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.


Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.


Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.

Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.


Q: How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q: How to repair and maintain the product?

A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.


Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?

A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.

Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
