2m/min Automated Parking Management System Home Two Post Car Parking Equipment

2m/min Automated Parking Management System Home Two Post Car Parking Equipment

  • High Light

    2.2KW automated parking management system


    2m/min automated parking management system


    Home two post car lift

  • Type
  • Place Of Origin
    Shanghai, China
  • Brand Name
  • Material
  • Dive Mode
    Hydraulic Drive
  • Certification
    CE ISO9001
  • Loading Capacity
  • Motor Power
  • Rated Speed
  • Mode Of Control
  • Lifting Height
  • Operation Mode
  • Power Supply
    380V/50HZ 3 Phase 5 Wires/220v Single Phase
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

2m/min Automated Parking Management System Home Two Post Car Parking Equipment

PJS 2 Post Two Levels Home Use Hydraulic Drive Easy Installation Low Construction Cost Parking Lift

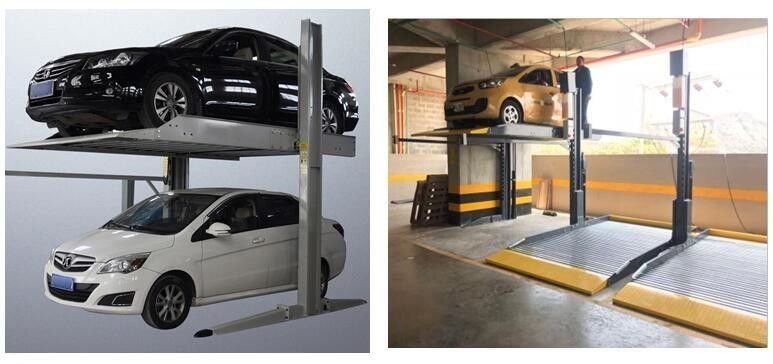

Two post parking lift is a kind of parking equipment which realizes parking by the lifting of the car pallet. It only has the lifting action, different from other stereo parking system.


Two post parkig lift is designed with two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out;


Mini mechanical parking lift is also known as household stereoscopic garage, it is a mechanical parking system that uses the lifting of the car pallet to realize the multiplication of stereoscopic parking spaces.This kind of parking equipment has simple structure, compact, button control, simple and fast operation. According to the driving mode, it can be divided into motor drive and hydraulic drive. The equipment is suitable for the construction of outdoor square, basement, small villa residence, etc., mostly used in private homes, enterprises and public institutions, basement and other scenes.


  • Home use stereo garage is a kind of mini mechanical parking system. It is different from the public stereo parking lot, the main object is private villas or private independent parking space.
  • According to the driving mode can be divided into hydraulic drive type and motor drive type.
  • According to the number of layers, it can be divided into 2 layers, 3 layers and 4 layers.
  • According to the number of columns can be divided into 2 columns, 4 columns.
  • According to the location can be divided into ground type and pit type.





  • It is simple in structure, convenient in operation, easy to maintain and repair.
  • Short construction cycle, low construction cost, 2 sets of more than can use the common column design, cost saving.
  • For the ground type household stereo garage,  when the upper parking space needs to park a car, the car in the bottom should be driven away; The pit type does not require any parking space to be moved, but the civil construction cost is higher than the ground type.
  • Remote control can be used to control the lifting of the car board, it is convenient for car storage.
  • Hydraulic driven, steel rope lifting system.

  • Single stage dual-cylinder lifting.

  • High polymer polyethylene slide blocks, wear-resistance.Platform runway & ramps made of diamond steel plates.

  • Movable galvanized steel plates in the middle.

  • Anti-falling mechanical locks in four posts at different heights to ensure safety.

  • Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

  • Space saving, possibility to share posts for multiple connected units. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated




1. First safety control with protective devices

  • Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.
  •  Limited switch device to protect the equipment running.
  • Photoelectric switch (device for checking the entrance of people and vehicles) to prevent the people from accidentally entering into the equipment under operation.
  • Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.

2. Oil cylinder

  • Used cylinder reversal, have many advantages, not distortion, dustproof. Adopt Italy Aston Seal ring.

3. Adjusting lifting height, the maximum lifting height can be 1800mm for small SUV.
4. Lifting capacity can be 2300kgs;
5. Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall;
6. Low noise, smooth operation, save energy, low carbon and environmental protection;
7. Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow polluting the lower vehicles;
8. Structure all adopts layer cutting, attractive appearance, easy installation, less malfunctions, easy maintenance.
9. Plastic spraying high quality coating, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics;
10. Simple structure, easy installation, minimal requirements for civil engineering;
11. Certifications: CE
Technical Parameter

型号(Model NO) PTP23/2100 PTP27/2100 PTP30/2100
举升重量(Lifting Capacity) 2300 Kg 2700 Kg 3000 Kg
举升高度(Lifting Height) 2100 mm 2100 mm 2300 mm
立柱高度(Post Height) 3000 mm 3500 mm 3500 mm
车道宽度(Drive Through) 2100 mm 2100 mm 2300 mm
毛重(Gross Weight) 950 Kg 1050 Kg 1150 Kg
寸(Packaging Dimension) 3800 x 800 x 800 mm 3850 x 1000 x 970 mm 3850 x 1000 x 970 mm
装箱数量Shipping load 8-10pcs/20‘ GP
18-20pcs/40' GP
解锁方式(Lock Release ) 电解锁 Electric unlock
上升厂F降时间(Rise / Drop Time) 70 S/ 60 S


(Power Supply/Motor Capacity)

220 V/380 Vf 50 Hz/60 Hz f 1 Ph / 3Ph, 2.2 Kw

2m/min Automated Parking Management System Home Two Post Car Parking Equipment 0

2m/min Automated Parking Management System Home Two Post Car Parking Equipment 1
2m/min Automated Parking Management System Home Two Post Car Parking Equipment 2
Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.


Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.


Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.

Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.


Q: How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q: How to repair and maintain the product?

A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.


Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?

A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.

Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
