2300kg Hydraulic Car Parking System 2 Post Vehicle Lift For Residential

2300kg Hydraulic Car Parking System 2 Post Vehicle Lift For Residential

  • High Light

    2300kg 2 Post Vehicle Lift


    Hydraulic Car Parking System 2 Post


    Residential Hydraulic Two Post Parking Lift

  • Type
    PJS Two Post Parking Lift
  • Body Material
  • Dive Mode
    Hydraulic/motor Drive
  • Lifting Capacity
    ≤2300kg, 2700kg, 3200kg
  • Motor Power
  • Car Size
    Upper:≤5000mm*1850mm*1550mm Grounding:≤5000mm*1850m*1550mm
  • Rise/drop Time
  • Noise
  • Power Supply
    220 V/380 V, 50 Hz/60 Hz, 1 Ph / 3Ph, 2.2 Kw
  • Operation Mode
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

2300kg Hydraulic Car Parking System 2 Post Vehicle Lift For Residential

Two Post Car Parking Lift
Two Post parking lift, home two-post three-dimensional parking equipment has a total of two empty parking spaces above and below. The lower level vehicles can enter and exit at will, if you want to park the upper level vehicles, you must first drive the lower level vehicles out.
Two stage dual-cylinder lifting system, hydraulic direct driven, chain-balancing system;
Electric or manual lock release system; multi-levels locking devices (3 or 5 holes);
Adjustable parking heights, optional remote control;
Optoelectronic switch device (prevent people or car miss-entrance during operation);
Nice appearance of electric powder coating (color optional) or hot dipped galvanized surface treatment;
Optional galvanized wave platform or diamond plate;
Buzzer and warning light flashing during operation;
The control button can choose long time press or jog buttons;
High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.
Suitable for commercial and residential use.
Product Specification

Lifting capacity2700kg2300kg
Lifting height2100mm2100mm
Usable platform width2100mm2100mm
Power pack2.2Kw hydraulic pump2.2Kw hydraulic pump
Available voltage of power supply100V-480V, 1 or 3 Phase, 50/60Hz100V-480V, 1 or 3 Phase, 50/60Hz
Operation modeKey switchKey switch
Operation voltage24V24V
Safety lockDynamic anti-falling lockDynamic anti-falling lock
Lock releaseElectric auto releaseElectric auto release
Rising / descending time<55s<55s
FinishingPowdering coatingPowder coating

Products advantages
1. Equipment rise height of 2100 mm, lifting weight of 2300-3200 kg, suitable for parking cars.
2. The size of the equipment can be individually customized according to the customer's requirements
3. Hydraulic drive and chain balance to ensure smooth operation of the equipment.
4. The carrier plate adopts fully enclosed design to avoid oil leakage and pollution of the lower level of the vehicle.
5. The structure of the equipment is all laser-cut, beautiful, easy to install and maintain; the columns can be shared between the equipment, saving costs and land area.
6. Can be widely used in hotels, enterprises and public institutions and residential areas and other types of places.


As you know there are limited spaces available in traffic congested city areas so it's really tough to park the vehicles in right way.  we offer a wide range of reliable car parking systems which will help you to solve out the parking problems and provide you with right parking solution which you are looking for.
The company deals in providing end to end solution in Car Parking segment whether its Car Parking – Hydraulic or Automatic Systems, Stack Parking, Parking Elevator, Boom Barrier, Parking Savers etc. We are engaged in offering Multi Level, Automated Car Parking Solutions to all the residential and commercial buildings and our team of experts supervise in compliance with international standards and have excellent quality.

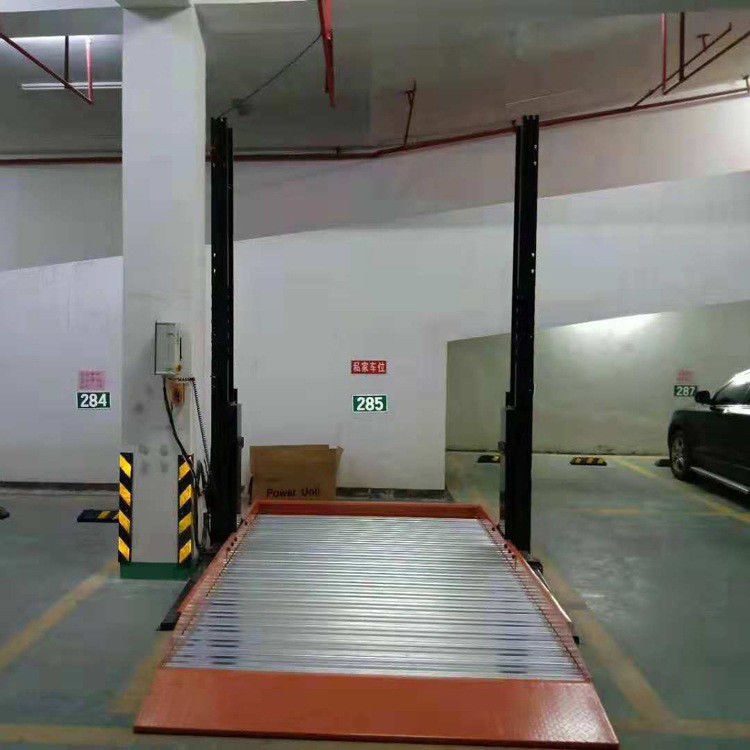

2300kg Hydraulic Car Parking System 2 Post Vehicle Lift For Residential 0

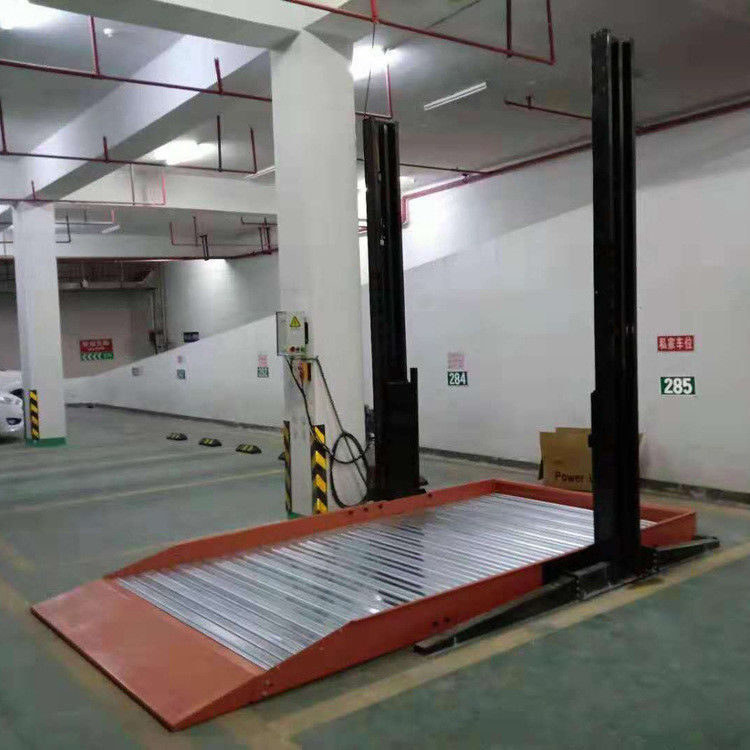

2300kg Hydraulic Car Parking System 2 Post Vehicle Lift For Residential 1
