2 Post Double Car Lift Stacker System Parking For Garage Vehicle Equipment

2 Post Double Car Lift Stacker System Parking For Garage Vehicle Equipment

  • High Light

    2000kg stacker system parking

    ,

    2500kg stacker system parking

    ,

    2 Post garage car stacking system

  • Type
    PJS Two Post Parking Lift
  • Material
    Steel
  • Dive Mode
    Hydraulic/motor Drive
  • Outer Size
    ≤5700mm*2800mm*3640mm
  • Loading Capacity
    2000/2500kg
  • Motor Power
    2.2kW
  • Car Size
    Upper:≤5000mm*1850mm*1550mm Grounding:≤5000mm*1850m*1550mm
  • Time
    35s
  • Noise
    ≤65db
  • Power Supply
    220v Single Phase 50HZ
  • Operation Mode
    Automatic/Manual
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PJS
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

2 Post Double Car Lift Stacker System Parking For Garage Vehicle Equipment

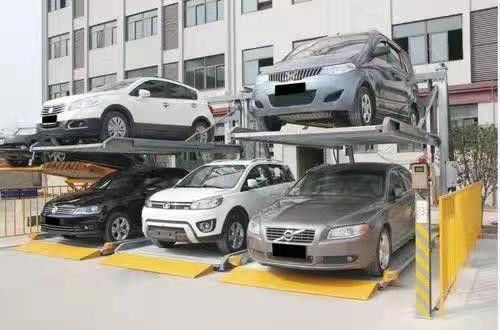

Two Post Car Parking Lift




Description



Two Post parking lift, home two-post three-dimensional parking equipment has a total of two empty parking spaces above and below. The lower level vehicles can enter and exit at will, if you want to park the upper level vehicles, you must first drive the lower level vehicles out.





Characteristics



Hydraulic driven and chain balance system.

Two stage dual-cylinder lifting.

Automatic lock & electric Lock release

Anti-falling mechanical locks (8 holes) at different heights to ensure safety.

Operation control box (UP, DOWN & EMERGENCY).

High polymer polyethylene slide blocks, wear-resistance. Suitable for commercial and residential use.

Space saving, possibility to share posts for multiple connected units. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated





Product parameters



Mode of drive
Hydraulic
Outer size
≤5700mm*2800mm*3640mm
Power
2.2kw
Car size
5000mm*1850mm*1550mm
Car weight
≤2000kg
Time
35s
Noise
≤65db
Parking way
Upper/Grounding:Both forwarding and reversing




Products advantages



1. Equipment rise height of 2100 mm, lifting weight of 2300-3200 kg, suitable for parking cars.

2. The size of the equipment can be individually customized according to the customer's requirements
3. Hydraulic drive and chain balance to ensure smooth operation of the equipment.
4. The carrier plate adopts fully enclosed design to avoid oil leakage and pollution of the lower level of the vehicle.
5. The structure of the equipment is all laser-cut, beautiful, easy to install and maintain; the columns can be shared between the equipment, saving costs and land area.
6. Can be widely used in hotels, enterprises and public institutions and residential areas and other types of places.





2 Post Double Car Lift Stacker System Parking For Garage Vehicle Equipment 0



2 Post Double Car Lift Stacker System Parking For Garage Vehicle Equipment 1





FAQ

Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.



Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.



Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.

Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.



Q: How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q: How to repair and maintain the product?

A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.



Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?

A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.

Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
