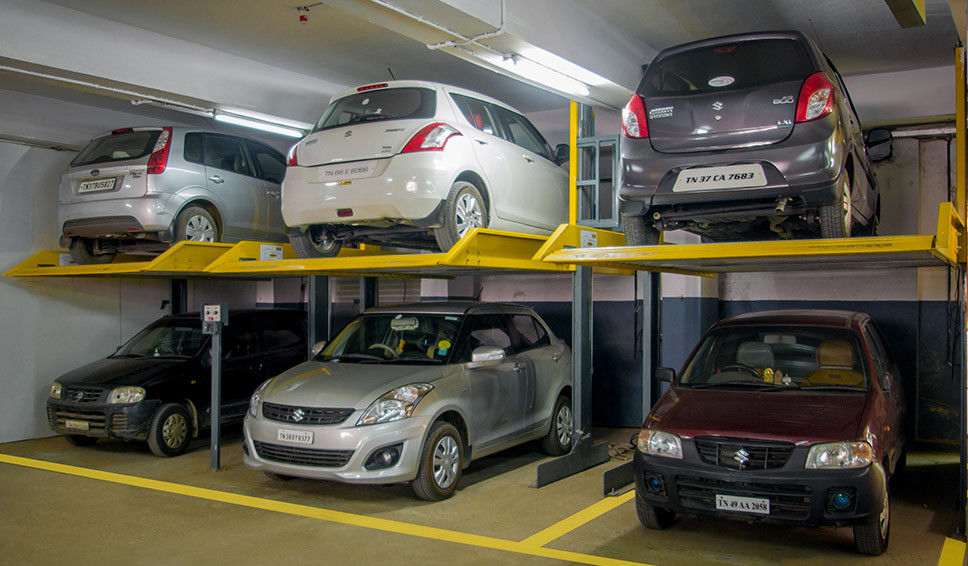

2 Level Elevated Car Parking System Double Layer Two Post Vehicle Lift

Two Post 2-level Parking Lift

Description

Two Post 2-level Parking Lift has a total of two empty parking spaces. Lower vehicles can be in and out freejly, if you want to park the upper vehicles, the lower vehicles must be drive out first.

• According to the driving mode can be divided into hydraulic drive type and motor drive type.
• According to the number of layers, it can be divided into 2 layers, 3 layers and 4 layers.
• According to the number of columns can be divided into 2 columns, 4 columns.
• According to the location can be divided into ground type and pit type.

Characteristics

• Only the upper parking space have the car plate, the upper car plate only do the lifting action;
• The lower parking space does not have the car plate, directly park the vehicle on the ground;
• When the upper parking space is about to enter the vehicle, drive the lower vehicle out first, and then the upper parking space down;
• After the upper parking space is raised, the lower car is parked in and parked on the ground.

Product advantages

• Two Post 2-level Parking Lift can be lifted to 2100 mm high, the lifting weight can be 2300-3200 kg, suitable for parking Sedans;
• The size of the equipment can be customized according to customer requirements;
• Hydraulic drive, chain balance to ensure smooth operation of equipment; The car plate adopts a fully enclosed design to avoid oil leakage pollution to the lower vehicle;
• All the equipment structure adopts laser cutting, beautiful appearance, easy installation, easy maintenance;
• Columns can be shared between equipment to save cost and land area;
• It can be widely used in hotels, enterprises, public institutions, residential areas and other places.

Steel structure

A. The steel is produced by well-known domestic steel mills and supplied directly, and has strict quality assurance procedures and quality (physical and chemical) inspection certificate.

B. 8.8 high strength bolt connection, with enough pre-tightening torque, not easy to loosen.

C. Surface treatment process: the surface of the steel structure of the equipment is derusting treated to remove rust and scale cinder. The derusting grade of the surface reaches Sa2.5 and the surface roughness reaches 25-40Mu to ensure the anti-rust grade of the workpiece surface after spraying.

D. surface antirust coating: steel structure parts surface antirust coating can be used in the following process: pickling spray

Car plate

The length of the upper plate is greater than the length of the car body. The car plate is made of galvanized wave plate, which is rolled into one by the standardized assembly line. With high strength, high corrosion resistance and high interchangeability. The side beam of the car plate is formed by cold pressing of the bending plate, which has strong corrosion resistance. The assembly of the car plate is connected by bolts without welding, with beautiful appearance, high strength and long service life. The inner width of the car plate is 2080mm, which is more spacious and humanized than the traditional width of 2000mm.

Devices

Emergency stop device

When the equipment runs in an emergency, press the switch immediately, the equipment will stop running immediately, after troubleshooting, the spinning switch must be removed before the equipment can be operated.

The car blocking device

It is provided with a car blocking device on the car plate. Whether it is reversing into the garage or driving into the garage, it has the function of reminding the driver to stop in place. At the same time, the car blocking device has the function of blocking the wheels to prevent the vehicle from sliding when the car plate runs.

Anti-fall device

The device can only be lowered by pulling down the device, even if the chain and other key components break or hydraulic pump failure, anti-fall device can effectively prevent the vehicle from falling and protect the vehicle personnel.

Limit switch

It is equipped with a limit switch on the equipment, which can well control the car plate to rise and fall to the position, and prevent the car plate beyond the position caused by accidents such as overturned vehicles.

Photoelectric switching:

when the equipment is in the process of operation, if the photoelectric switch sensing obstacles below, the equipment will automatically stop running.

100 process strictly controlled, the appearance of the central air conditioning spraying process, the key electrical equipment are waterproof, anti-corrosion spraying process, prevent these parts from aging too fast.

Applicable Places

1. Two Post 2-level Parking Lift  has a wide range of use, suitable for families, villas, residential properties, hotels and other places, indoor and outdoor is available;

2, Two Post 2-level Parking Lift  takes up one space and has two parking spaces, save the land area, make full use of space. With commercial, home use and other uses;

3, according to the needs and site conditions, independent and multiple options, easy and quick operation, space-saving performance and strong expansibility.

Technical Parameters

Project case

FAQ

Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.


Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.

Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.

Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.

Q: How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q: How to repair and maintain the product?

A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.

Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?

A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.

Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
