Tower Type Elevated Car Parking System Vertical Intelligent Parking Management

Tower Type Elevated Car Parking System Vertical Intelligent Parking Management

  • High Light

    35 levels Elevated Car Parking System

    ,

    tower type Elevated Car Parking System

    ,

    vertical intelligent parking management system

  • Mode Of Drive
    Traction Drive, Comb Exchange
  • Levels Of Tower
    35
  • Electricity
    AC380V,50Hz, 3 Phases 5 Wires System
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PCS
  • Minimum Order Quantity
    1 unit
  • Price
    to be negotiated
  • Packaging Details
    standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    50 sets per year

Tower Type Elevated Car Parking System Vertical Intelligent Parking Management

Work Principle


Vertical lifting mechanical parking system adopts comb pallet combined with characteristics of PSH hydraulic puzzle parking system and vertical lifting parking system, driven by hydraulic large transmission ratio.



Parking: The turntable turns at work position; The lifter falls down, drive the car into the ground parking space, the driver come out of car and goes to the operative panel, card reading or manual button operation, the lifter lifts the car to the top position of the appointed car parking space, the comb pallet slide out to the middle lift channel, the lifter falls and puts the car on the comb pallet, the comb pallet with the car slide into the space; the lifter falls to the ground waiting for next car parking.


Retrieving: The comb pallet with the car together slide out to the middle channel, the lifter lift up and exchange the car on to the lift comb, the comb pallet slide into original space, the lifter falls and puts the car on the ground comb turntable, the turntable turns 180 degree, the driver now can go into car and drive away directly.





Technical Parameters



Item Parameters
Product name Vertical lifting mechanical parking system
Mode of drive Traction drive, Comb exchange
Levels of tower 35
Total spaces 70
Size of car (L*W*H) Some levels: 5300mm*1900mm*2050mm
Some Levels: 5300mm*1900mm*1550mm
Weight of car 2350kg max
Tower area size 7500mm*8520mm*67865mm
Number of cars Based on customer requirements
Mode of operation Auto / Manual (Monitor control)
Speed of operation lift 120m/min
slide 7.5m/min
turning 4rpm
Motor power lift 30KW
slide 0.2KW
turning 1.5KW
Electricity for power AC380V,50Hz, 3 phases 5 wires system
for control AC220V,50Hz, 2 phases 3 wires system
Carry system carry motor 1.5kw
carry speed 40m/min
Turn Turn motor 2.2KW
Carrying speed 3.0/rpm
Electricity for power AC380V,50Hz, 3 phases 5 wires system
Mode of parking Forward in, Forward out
Mode of operation IC Card / Touch screen / Manual
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion painting





Characteristics



  • Vertical lifting mechanical parking system only needs 50 square meters to park 50 parking Spaces.
  • Elevator drag lift, super speed 2 meters per second.
  • Can be single tower, parallel, well, recolumn etc. a variety of combinations.
  • Each tower 50 parking, high-speed to take the car, the cost is relatively cheap.
  • Low noise, smooth lifting.
  • Touch screen button operation
  • can be equipped with inductive card reader, charging management system.
  • The parking space is checked in the seat, and the personnel is checked in the warehouse.
  • Prevent the vertical and horizontal jumping device of the platform during earthquake.
  • Operation state real-time display, failure record

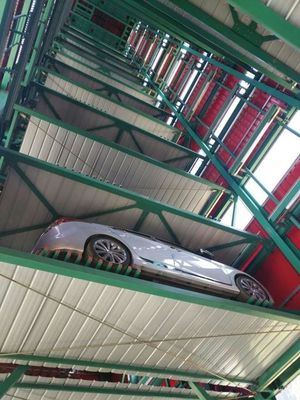

Tower Type Elevated Car Parking System Vertical Intelligent Parking Management 0
