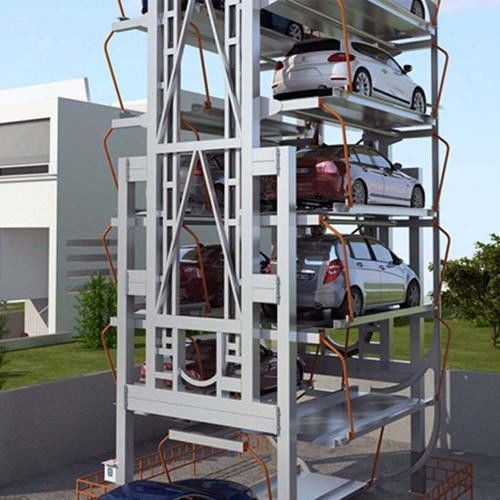

8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System

8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System

  • High Light

    8 SUVs Multilevel Car Parking System

    ,

    60s Multilevel Car Parking System

    ,

    Motor Drive smart rotary parking system

  • Type
    Parking System
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Drive
    Motor
  • Warranty
    5 Years
  • Product Name
    Rotary Parking System
  • Color
    Customized
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PCX
  • Minimum Order Quantity
    1 unit
  • Price
    to be negotiated
  • Packaging Details
    standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    50 unit per month

8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System

PCX- Safe and reliable operation with small area fully automated vertical rotary parking system



Description



Rotary parking system is a kind of circular parking equipment similar to the carousel, access vehicles through all the rotation of the platform, there are generally 8 parking spaces,10 parking spaces,12 parking spaces and other types.



Rotary parking system is one of the most space-saving systems that allows you to park up to 16 SUVs or 20 sedans in only 2 conventional parking spaces. The system is independent, no parking attendant is required. By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to ground either clockwise or counterclockwise.





8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System 0



Product Details



8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System 1







Product advantages



1) covers an area of small; two berths area can stop 6-10 vehicles.
2) The decoration can be added only roof, fire hydrants available.
3) Low prices, foundation, external decoration, fire and other small investment,
short construction periods.
4) Use automatic control, safe and reliable operation.





Technical parameters



Item Parameters
Type Vertical Rotary
Levels of system 5
Paring Spaces 8
Size of car
(L*W*H)
5300*1900*1550mm
5300*1900*1950mm
Car Weight 2000kg / 2350kg
Drive motor 5.5kw
Rotating Speed 4.4/min
Parking time 60S
Drive Mode Motor + Chain
Control PLC type (basic)
Control Method Touch screen / Push button or IC card
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
Safety devices 1.Car block device (Positioning)
2.Operation warning device (Warning light)
3.Car position detection device (Over length, over width detection)
4.Malfunction warning device
5.Man or car mistake entrance detection (Photoelectric switch protection devices);
6.Emergency brake device when electricity cut off;
7.Over current flow protection device
8.Key switch against wrong operation;
9.Wrong phase, shortage phase protection, motor over loading protection device;
10.Emergency stop button;



Dimensions



8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System 2





Main Structures

Rotary parking system is composed of 7 basic structures
Foundation, Steel structure, Pallets, Transmission, Control System, Safety Protection Devices and other Auxiliary Devices;





8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System 3



Safety characteristics



8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System 4

8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System 5



Maintenance



To ensure proper and stable fuction of entire parking system in the long run, regular and periodic inspection & maintenance

are also of vital importance:



8 SUVs Multilevel Car Parking System Motor Drive Smart Rotary Parking System 6
