5 levels puzzle car parking system
Puzzle parking system is the most widely used stereo parking solution in the market at present, and also one of the stereo garage types with the highest market share in China.

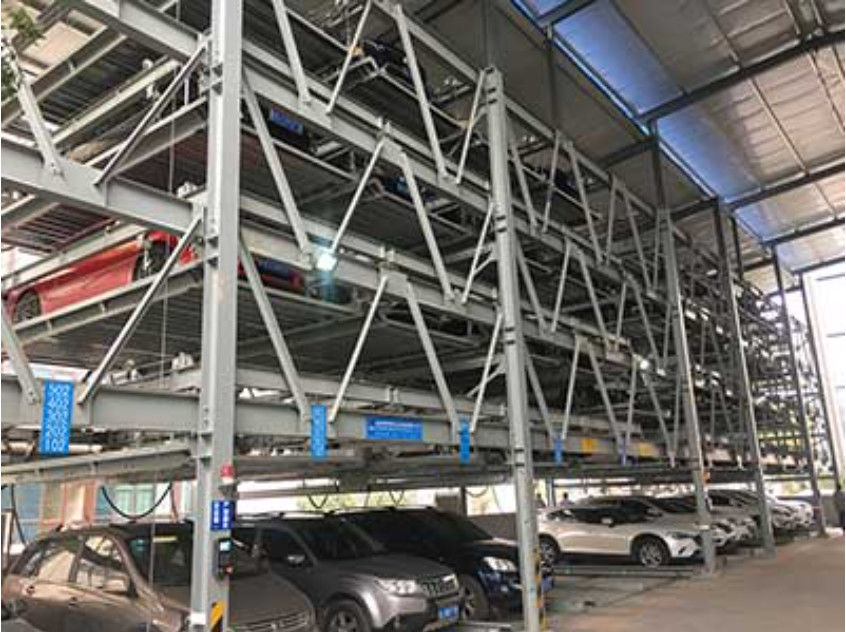

PSH 5-level puzzle parking system using motor drive wire rope or chain lifting, it can build 5-layer mechanical parking garage and can be designed up to eight floors on the ground. It can be built on the ground, also built in the basement. the entrance is on the ground floor, with a large span design, very suitable for building in the green square, residential buildings and office basement, compared with the same type of equipment, it make full use of the underground area, it is a relatively high space utilization rate of equipment.
PSH 5 - layer puzzle parking equipment is a parking solution which realizes the access of vehicles by lifting and sliding the platform. Its scale can be large or small, can be arbitrarily combined and arranged according to different terrain and space, the space utilization rate is high, the equipment is safe and reliable, the access car is fast, the use and maintenance is simple. Therefore, it is a multi-storey stereo parking solution with small footprint and low construction cost.
PSH 5-floor puzzle parking system can build 11 mechanical parking spaces in the space of 3 flat parking spaces, which is a stereoscopic parking solution suitable for the renovation of old residential areas.
PSH 5-storey puzzle parking system can realize the separation of people and cars, it is suitable for the increase of parking spaces in newly built residential areas and old-fashioned residential areas. Its operation principle is like rubik's cube, it's a kind of intelligent equipment that through the lifting and sliding of the car pallet to achieve stereoscopic storage. The uppermost car pallet is only used for lifting, the ground floor car pallet is only used for sliding movement, and the middle 2-4 layers can be lifted or moved horizontally.
When to store a car, the user drives the car to the front of a parking system with a vacant space, selects the target parking space and enters a password or swipes a card. This target parking space, the parking space under the car pallet moves horizontally so as to form a down channel for the target parking space. The car pallet on the target parking space is lowered to the ground by the lift system and the safety door automatically rises (if available).The user drives the car by reversing into the car pallet of the puzzle parking garage. The reason for reversing into storage is based on the parking safety considerations of international practice. After parking the vehicle properly, the user leaves the car pallet to the control panel and swipes the card again. At this point, the safety door automatically lowers (if available).The parking system will automatically store the vehicle to the target parking space, and the whole parking process finish.
When taking the car, the user swipes the card or enters the password, and the parking space below the target parking space moves horizontally to form a down channel for the target parking space. The target parking space is lowered to the ground and the safety door automatically rises. The user drives the car out of the stereo garage and swipes the card again, the safety door automatically lowers, and the whole process of picking up the car finish.
|Drive Mode||Motor + wire rope or motor + chain|
|Levels of system||5|
|Size of car
|Operation Mode||Auto IC card/ Manual button|
|Lifting motor power||5KW|
|Sliding motor power||0.2KW|
|Control Method||Touch screen / Push button or IC card|
|Parking way||Forward in, Back out|
|Electricity||3 phases 5 wires, 380V, 50HZ|
|Safety devices||Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection
Cylinder stroke protection, and anti-fall frame
|Warning devices||Sound, light, electricity|
|Malfunction indication||Computer malfunction diagnosis, human-computer communication information display, liquid crystal display|
|Hot spray galvanized treatment and high-grade anti-corrosion painting|
|Controller||PLC, with control monitoring, IC card, manual and operative panel;|
|Way of parking in and out||Forwarding in and forwarding out;|
