Underground Pit Elevated Car Parking System 3 Level  4 Post Auto Lift

Underground Pit Elevated Car Parking System 3 Level 4 Post Auto Lift

  • High Light

    2000kg Elevated Car Parking System

    ,

    underground pit Elevated Car Parking System

    ,

    3 level 4 post auto lift

  • Type
    PJS
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Material
    Steel
  • Dive Mode
    Motor+chain
  • Certification
    CE ISO9001
  • Loading Capacity
    2000kg
  • Motor Power
    5.5~7.5KW
  • Mode Of Control
    IC Card Reading / Manual Button
  • Controller
    PLC
  • Electricity
    3 Phases 5 Wires, 380V, 50HZ
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PJS
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

Underground Pit Elevated Car Parking System 3 Level 4 Post Auto Lift

4 Post Pit Lift Parking System, 2 cars in the pit, 1 car on the ground, no sliding-PJS(-2+1)





Working principle

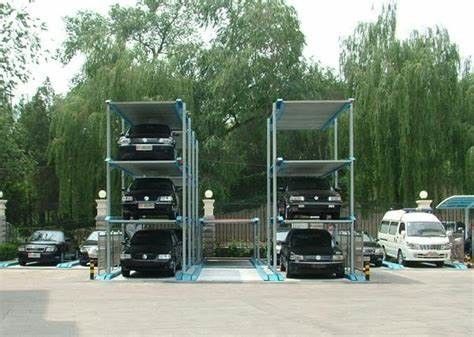

4 Post Pit Lift Parking System is designed with 3 levels, 2 in the pit, 1 on the ground, each column total 3 cars can lift up and down freely. The top car can go directly in and out; the middle car can go in and out when the middle car lift to the ground level; the bottom car can go in and out freely when it lift up to the ground level. It has big pallets covering the top pit area. Total depth of pit will be 4260mm.



The pallet is 150mm higher than the land level, it has a 1500mm slopping way for the car parking, and it has a tight cover with the ground frame against water into the pit. It is designed with water drainage system, maintenance entrance with ladders.



The top car pallet can be planted with grass and flowers to keep a wonderful environmental requirements.



Underground Pit Elevated Car Parking System 3 Level  4 Post Auto Lift 0



Description



4 Post Pit Lift Parking System is also known as household stereoscopic garage, it is a mechanical parking device that uses the lifting of the carrying plate to realize double increase of parking spaces. This kind of parking equipment structure is simple, compact, PLC or button control, simple and fast operation. According to the driving mode can be divided into motor drive and hydraulic drive. The equipment is suitable for the construction of outdoor square, basement, small villa residence, etc., mostly used in private homes, enterprises and institutions, basement and other scenes.





Characteristics



  • It saves the land area and takes full use of the underground area.
  • It can be designed with neighbored multi-sets layout to raise the parking numbers of cars.
  • The middle and bottom cars may have advantages of anti-dust, anti-rain, anti-theft.
  • It is safe and reliable and easy in operation.
  • Low area coverage and high usage rate of space;
  • The levels and columns will be added to raise the number of cars according to the customer's requirements;
  • It may be designed with full-closed style to adjust the surrounding environment;
  • It operates steadily without noise and with fast operating speed and short parking and releasing time;
  • Multi-ways of safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading.



Underground Pit Elevated Car Parking System 3 Level  4 Post Auto Lift 1





Main structure



  • Steel structure
  • Car pallet
  • Lifting system
  • Drive system
  • Electrical system
  • Safety guard device
  • Hydraulic drive system or motor drive system



Technical Parameters



Item Parameters
Product name 4 Post Pit Lift Parking System
Model PJS(-2+1)
Levels of system 3
Spaces Based on requirements
Size of car (L*W*H) 5000*1850*1550mm
5000*1850*2050mm
Weight of car 2000kg
Motor power Lift: 5.5~7.5KW,
speed: Lift: 3-6m/min
Fall: 5m/min
Slide: 0.2kw
Drive mode motor chain drive
Modes of operation IC card reading / Manual button with keyboard
Controller PLC
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion painting
Parking way Forward in, Back out
Electricity

3 phases 5 wires, 380V, 50HZ
