SUV Multilevel Car Parking System Puzzle 3 Level Parking Lift

SUV Multilevel Car Parking System Puzzle 3 Level Parking Lift

  • High Light

    SUV Multilevel Car Parking System

    ,

    2500kg Multilevel Car Parking System

    ,

    puzzle 3 level parking lift

  • Type
    PSH 3 Levels Mechanical Puzzle Parking System
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Material
    Steel
  • Model Number
    PSH3
  • Dive Mode
    Motor + Wire Rope Or Motor + Chain
  • Certification
    CE ISO9001
  • Car Size (LxWxH)
    5000*1850*2050(SUV)/1550(sedan)mm
  • Loading Capacity
    2000kg
  • Motor Power
    4kW
  • Lifting Speed
    4-6m/min
  • Sliding Motor Power
    0.2kW
  • Sliding Speed
    8m/min
  • Operation Mode
    Touch Screen / Push Button Or IC Card
  • Power Supply
    380V/50HZ 3 Phase 5 Wires
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PSH
  • Minimum Order Quantity
    5 piece
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

SUV Multilevel Car Parking System Puzzle 3 Level Parking Lift

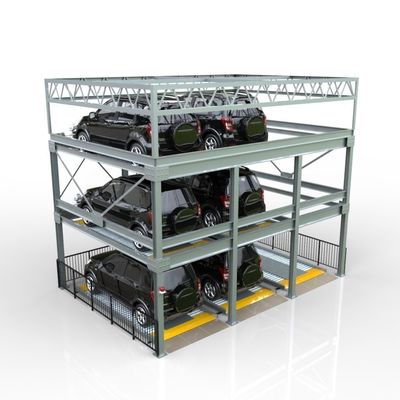

3 levels puzzle car parking system​



Work Principle



This system is designed with 3 layers and multi-columns layout. Each layer is designed with a spare space as an exchanging space. All spaces can be auto-lifting freely except the spaces in the first layer and all the spaces can be auto-transverse moving except the spaces in the top layer. When a space needs to park or release a car, all spaces under the space will make a one space transverse moving to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in freely.





SUV Multilevel Car Parking System Puzzle 3 Level Parking Lift 0





Characteristics



Puzzle parking system is the most widely used stereo parking solution in the market at present, and also one of the stereo garage types with the highest market share in China.



PSH 3-level puzzle parking system using motor drive wire rope or chain lifting way, it can build 3-layer mechanical parking garage and can be built on the ground, can also be built in the basement. It can be designed up to eight floors on the ground, the entrance is on the ground floor, with a large span design, very suitable for building in the green square, residential buildings and office basement, compared with the same type of equipment, it make full use of the underground area, it is a relatively high space utilization rate of equipment.



PSH 3 - layer puzzle parking equipment is a parking solution which realizes the access of vehicles by lifting and sliding the platform. Its scale can be large or small, can be arbitrarily combined and arranged according to different terrain and space, the space utilization rate is high, the equipment is safe and reliable, the access car is fast, the use and maintenance is simple. Therefore, it is a multi-storey stereo parking solution with small footprint and low construction cost.



PSH 3-floor puzzle parking system can build 7 mechanical stereoscopic parking spaces in the space of 3 flat parking spaces, which is a stereoscopic parking solution suitable for the renovation of old residential areas.



Main Structure



  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • Hydraulic system
  • PLC control system
  • Safe-guard system



SUV Multilevel Car Parking System Puzzle 3 Level Parking Lift 1





Technical Parameters



Item Parameters
Drive Mode Motor + wire rope or motor + chain
Levels of system 3
Size of car
(L*W*H)
5000*1850*1550mm
5000*1850*2050mm
Car Weight 2000kg/2500kg
Operation Mode Auto IC card/ Manual button
Lifting motor power 5KW
Lifting speed 4-6M/MIN
Sliding motor power 0.2KW
Sliding speed 8M/MIN
Control Method Touch screen / Push button or IC card
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
Safety devices Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection
Cylinder stroke protection, and anti-fall frame
Warning devices Sound, light, electricity
Malfunction indication Computer malfunction diagnosis, human-computer communication information display, liquid crystal display
Parts appearance
treatment
Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and out Forwarding in and forwarding out;
