PCX-Fast Parking Time 14 SUVs Smart Vertical Rotary Parking System



Descriptions

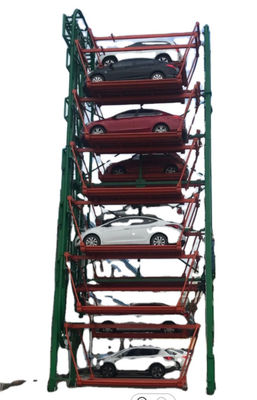

Vertical Rotary Parking System 14 Cars or SUVs is the Rotary Parking System for 14 Cars; it mainly consists of steel structure, load carrier, drive system, control system, safety and detection system.

It is the designed system that an automobile is put in the cage, the cage rotates up and down as well as right and left and then the automobile is parked.

This Automatic Parking System is designed 14 cars or 14 SUV's to be parked easily and safely, on the surface area required to park 2 cars. It is simple to operate with the driver parking and leaving the vehicle in the system at ground level.

Once the driver leaves the incorporated safety zone the vehicle is automatically parked by the system rotating to lift the parked car away from the bottom central position. This leaves an empty parking space available at ground level, for the next car to be parked on.

The parked car is easily retrieved by IC card or pushing the button for the relevant position number the car is parked on. This causes the required car to rotate down to ground level ready for the driver to enter the safety zone and reverse the car out of the system.





Working Principle



Rotary Parking Equipment mainly consists of main steel structure, plate structure, transmission system, control system and safety protection device. This automated parking solution suitable for small size building like shops, hotels, apartment blocks. Simply for site where is lack of parking spaces. Construction of the system required only two parking space. This system is developed to utilize maximum vertical area in a available minimum ground area.



There is no need for a attendant because of its simple one touch operation. The system senses where vehicle is closer to the ground and rotates bidirectionally either clockwise or counter clockwise for fast retrieval time. Extremely safe and reliable. It is impossible for vehicles to fall with endless chain and pallet drop prevention system.



Steps: All cars will rotate along the clockwise or anti-clockwise until the car get to ground; For example in the following picture show, if we want to get the top car, all the cars rotate along anti-clock direction; The top pallet car falls to the ground and driver can take it away directly;





Characteristics



1. Covering small land area and parking more spaces with high usage of land area; Two car spaces can park from 8 to 14 cars or more; Flexible and easy parking with less requirement of the land area and it is easy and convenient for moving;

2. Frame structure design with fine structure and loading weight, well earthquake resistance; Steel structure adopts rectangular pipes, HA pipes best quality steel with fine appearance; Designed with different sizes steel according to different loading weight; Earthquake resistance is 7 scales;

3. The lifting structure has beautiful humanization design to avoid leakage;

4. Convenient installation, fastening directly by bolts, the car pallet is assembly or integral installation with short period of installation time;

5. Motor is world famous brand with advantages of low noise, small volume, light weight, fewer malfunctions and saving energy;

6. Chain or steel rope adopts safety index over

7; anti-corrosion and high anti fatigue performance;

8. Simple and reliable structure, low malfunction, less motor (14 cars spaces only 1 motor;), low malfunction and easy maintenance;

9. Quick installation time and easy maintenance with the least trouble. Unit can be reinstalled in a new location, if necessary.





Main Structures



Rotary parking system is composed of 7 basic structures

Foundation, Steel structure, Pallets, Transmission, Control System, Safety Protection Devices and other Auxiliary Devices;



CE Smart Car Parking System Solutions 8 Levels 14 SUVs 0





Technical parameters



Item Parameters
Type Vertical Rotary
Levels of system 8
Paring Spaces 14
Size of car
(L*W*H)
5300*1900*1550mm
5300*1900*1950mm
Car Weight 2000kg
Drive motor 12kw
Rotating Speed 4.7m/min
Parking time 80S
Drive Mode Motor + Chain
Control PLC type (basic)
Control Method Touch screen / Push button or IC card
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
Safety devices 1.Car block device (Positioning)
2.Operation warning device (Warning light)
3.Car position detection device (Over length, over width detection)
4.Malfunction warning device
5.Man or car mistake entrance detection (Photoelectric switch protection devices);
6.Emergency brake device when electricity cut off;
7.Over current flow protection device
8.Key switch against wrong operation;
9.Wrong phase, shortage phase protection, motor over loading protection device;
10.Emergency stop button;


CE Smart Car Parking System Solutions 8 Levels 14 SUVs 1
