3 Layers Hydraulic Car Parking System

PSH(-1+2) Hydraulic Pit Puzzle Parking System​​


It is aimed for optimum use of space in basement type parking. It is hydraulically designed. Vertical levels up to 2 levels above  ground

and one level below ground. We have specially designed to pit puzzle system. This system is use to save the space and utilize the space

to park more vehicle in a space of one vehicle.



Work Principle

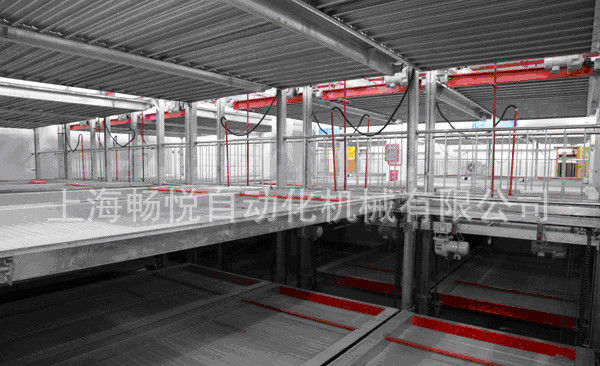

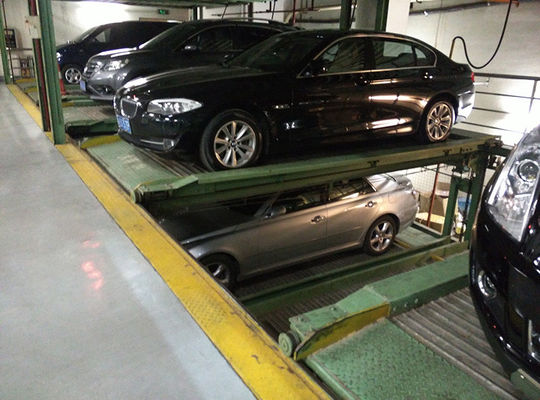

This system is designed with 3 levels, 1 in the pit, 2 on the ground, each column total 3 cars can lift up and down freely. There is 1 spare car on the ground level as an exchange space. The ground level car can slide left and right for upper car fall down. The ground car can go in and out freely, the pit car can lift up when the ground car slide to be a spare space, and go in and out then. The top car can fall down when the ground car slide to have the spare space. The ground level space has big pallets covering the pit area.


Low area coverage and high usage rate of space; The levels and columns will be added to raise the number of cars according to the customer's requirements; It may be designed with full-closed style to adjust the surrounding environment; It operates steadily without noise and with fast operating speed and short parking and releasing time; Multi-ways of safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading.



3 Layers Hydraulic Car Parking System 0



Technical Parameters


Item Parameters
Model PSH(-1+2)
Levels of system 3
Spaces Based on requirements
Size of car (L*W*H) 5000*1850*1550mm
Weight of car 2000kg
Motor power and speed Lift: 5.5KW, 12m/min
Slide: 0.2kw, 8m/min
Safeguard devices Hydraulic whole protection and anti-fall frame
Modes of operation IC card reading / Manual button with keyboard
Controller PLC
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion painting
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
