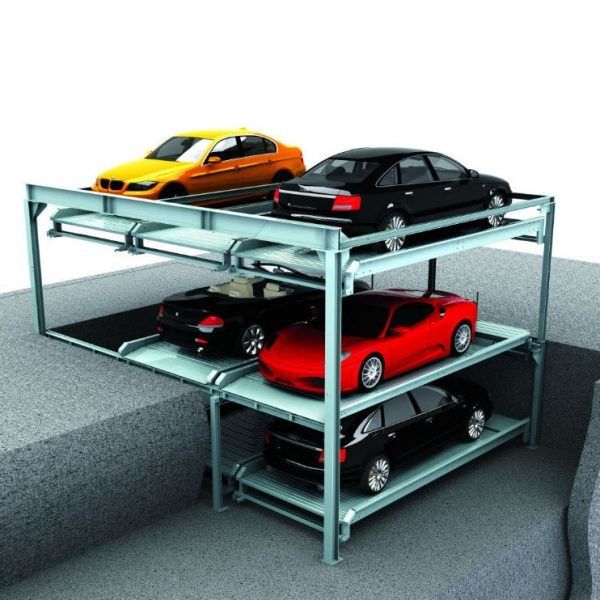

Hydraulic Pit Lift Parking System, 2 cars in the pit, 1 car on the ground, no sliding-PJS(-2+1)
This is a three level design parking system, the bottom and middle level installed as a lifting body and those two levels usually stay in pit.
The top level can pick up the car directly. When pick up the car from the bottom and middle level. those levels need to lift to pick up the cars.
The top car pallet can be planted with grass and flowers to keep a wonderful environmental requirements.
It saves the land area and takes full use of the underground area. It can be designed with neighbored multi-sets layout to raise the parking numbers of cars. The middle and bottom cars may have advantages of anti-dust, anti-rain, anti-theft. It is safe and reliable and easy in operation.
Low area coverage and high usage rate of space; The levels and columns will be added to raise the number of cars according to the customer's requirements; It may be designed with full-closed style to adjust the surrounding environment; It operates steadily without noise and with fast operating speed and short parking and releasing time; Multi-ways of safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading.
|Levels of system||3|
|Spaces||Based on requirements|
|Size of car (L*W*H)||5000*1850*1550mm|
|Weight of car||2000kg|
|Motor power||Lift: 5.5~7.5KW,|
|speed: Lift: 3.6m/min|
|Safeguard devices||Hydraulic whole protection and anti-fall frame|
|Modes of operation||IC card reading / Manual button with keyboard|
|Warning devices||Sound, light, electricity|
|Malfunction indication||Fault diagnosis by computer, liquid crystal display|
|Frame composition||Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;|
|Parts appearance treatment||Galvanized treatment and high-grade anti-corrosion painting|
|Parking way||Forward in, Back out|
3 phases 5 wires, 380V, 50HZ
