Hydraulic 3 Level Car Stacker Chain Drive Outdoor Auto Lift

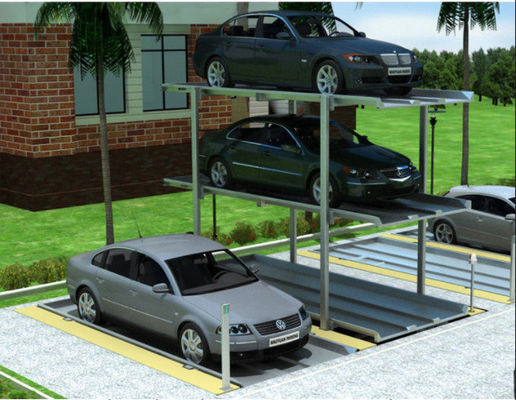

Hydraulic Pit Lift Parking System, 2 cars in the pit, 1 car on the ground, no sliding-PJS(-2+1)


Working principle


This system is designed with 3 levels, 2 in the pit, 1 on the ground, each column total 3 cars can lift up and down freely. The top car can go directly in and out; the middle car can go in and out when the middle car lift to the ground level; the bottom car can go in and out freely when it lift up to the ground level. It has big pallets covering the top pit area. Total depth of pit will be 4260mm.


The pallet is 150mm higher than the land level, it has a 1500mm slopping way for the car parking, and it has a tight cover with the ground frame against water into the pit. It is designed with water drainage system, maintenance entrance with ladders.


The top car pallet can be planted with grass and flowers to keep a wonderful environmental requirements.





  • Two cars can be parked when the bottom pit is 2 meters, and three cars can be parked when the bottom pit is 3.9 meters.
  • Equipment operation only up or down, don't need to move transversely, the failure rate is very low.
  • Adopt key operation, motor drive chain drive.
  • When the vehicle is in and out of the storage, the platform is lowered back into the pit, just like the ground parking, which is in harmony with the environment.
  • Drainage pump shall be installed for foundation pit


Hydraulic 3 Level Car Stacker Chain Drive Outdoor Auto Lift 0



Technical Parameters


Item Parameters
Model PJS(-2+1)
Levels of system 3
Spaces Based on requirements
Size of car (L*W*H) 5000*1850*1550mm
Weight of car 2000kg
Motor power Lift: 5.5~7.5KW,
speed: Lift: 3.6m/min
Fall: 5m/min
Slide: 0.2kw
Drive mode motor drive
Modes of operation IC card reading / Manual button with keyboard
Controller PLC
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion painting
Parking way Forward in, Back out

3 phases 5 wires, 380V, 50HZ
