Smart 2000kg Rotary Automated Car Parking System 380v

Smart 2000kg Rotary Automated Car Parking System 380v

  • High Light

    smart rotary automated car parking system


    2000kg rotary automated car parking system


    380v vertical rotary car parking system

  • Type
    Vertical Rotary
  • Mode Of Drive
    Motor + Chain
  • Warranty
    2 Years
  • Product Name
    Rotary Parking System
  • Electricity
    3 Phases 5 Wires, 380V, 50HZ
  • Lifting Capacity
  • Motor
  • Noise
  • Electricity Consumption
    An Average Of 0.46 KWh Of Electricity For Taking A Car
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    to be negotiated
  • Packaging Details
    standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    50 unit per month

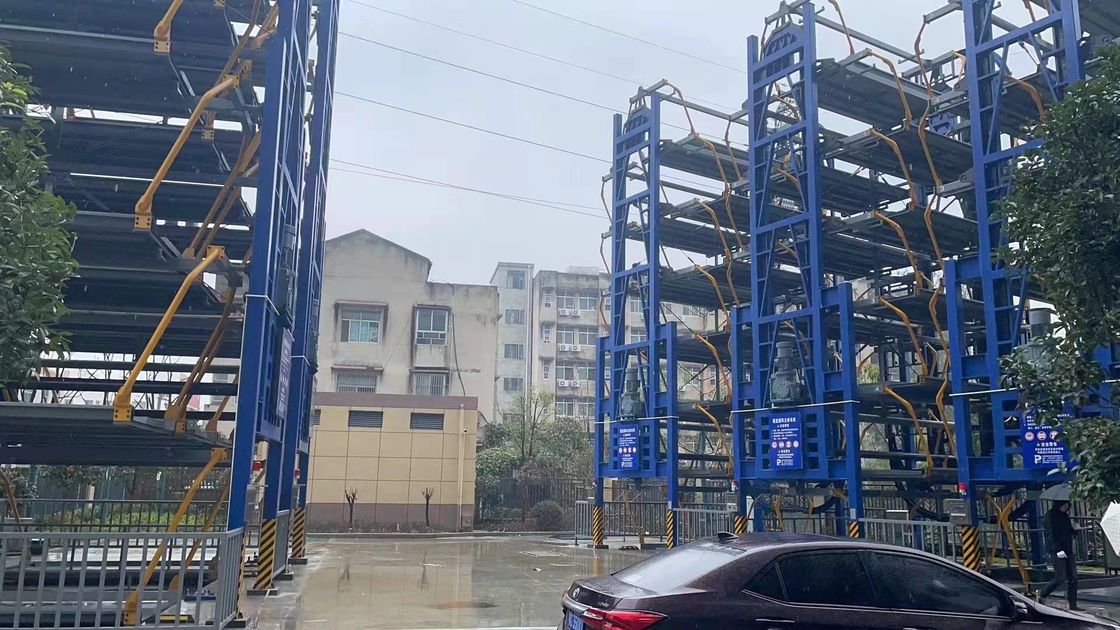

Smart 2000kg Rotary Automated Car Parking System 380v

Vertical Rotary Parking System 18 Cars or SUVs





Vertical Rotary Parking System 18 Cars or SUVs mainly consists of steel structure, load carrier, drive system, control system, safety and detection system.

It is the designed system that an automobile is put in the cage, the cage rotates up and down as well as right and left and then the automobile is parked.

This Automatic Parking System is designed 18 cars or 18 SUV's to be parked easily and safely, on the surface area required to park 2 cars. It is simple to operate with the driver parking and leaving the vehicle in the system at ground level.

Once the driver leaves the incorporated safety zone the vehicle is automatically parked by the system rotating to lift the parked car away from the bottom central position. This leaves an empty parking space available at ground level, for the next car to be parked on.

The parked car is easily retrieved by IC card or pushing the button for the relevant position number the car is parked on. This causes the required car to rotate down to ground level ready for the driver to enter the safety zone and reverse the car out of the system.



Technical parameters


(Model NO.)



(Lifting Capacity)

2000 Kg

2300 Kg

(Vehicle Size)

5200 x 1900 x 2050 mm

5300 x 2000 x 2000 mm

(Parking Space)

18 cars

(Drive mode)

motor + chain + sprocket

(Motor Capacity /Speed) (Operation Mode) (Platform Materials)

7.5 Kw x 4 P/ 4.4 M / Min (2 RPM) 15 Kw-MOTOR 9.2 Kw/<4.4 M/ Min

IC card/ press button/touch sreen

2.2 mm galvanized wave plate

 (Total Loading Capacity)

22000 Kg

23640 Kg


2 years against manufacturing defects

(Installation space(mm))

6000 x 4850 mm 6500 x 5500 mm

(Safety Device)

Photo Electric Sensor

(Power Supply/Motor Capacity)

220 V/ 380 V, 50 Hz /60 Hz, 1 Ph/ 3 Ph, 7.5 Kw



Working Principle


Each space has a car pallet, the pallets for parking or retrieving will rotate along a direction to realize the parking or retrieving space to the ground; Driver can park or get the car directly in the ground space;


Steps: All cars will rotate along the clockwise or anti-clockwise until the car get to ground; For example in the following picture show, if we want to get the top car, all the cars rotate along anti-clock direction; The top pallet car falls to the ground and driver can take it away directly;





1. Motor driven, chain lifting system.
2. Designed to park vehicles by vertically circulating cage in CW / CCW directions.
3. The most space efficient parking solution as you can park up to 20 cars in small area doesn't exceed 2 cars. Simple one-touch control and 4. doesn't require professional operator.
4. Intelligent rotation direction (in CW / CCW) to shorten entry / exit time.
5. PLC automatic control system, touch screen to call the required vehicle in one touch.
6. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated



Main Structures


Rotary parking system is composed of 7 basic structures

Foundation, Steel structure, Pallets, Transmission, Control System, Safety Protection Devices and other Auxiliary Devices;
