Mechanical Puzzle Car Parking System PLC Automatic Control

Mechanical Puzzle Car Parking System PLC Automatic Control

Products - Puzzle Car Parking System
  • High Light

    Mechanical Puzzle Parking System

    ,

    PLC Control Mechanical Parking System

    ,

    Puzzle Smart Car Parking System

  • Certification
    CE ISO9001
  • Type
    PSH 7 Levels Mechanical Puzzle Parking System
  • Material
    Steel
  • Dive Mode
    Motor Driven And Roller Chain Or Steel Rope Lifting System.
  • Car Size (LxWxH)
    5000*1850*2050(SUV)/1550(sedan)mm
  • Loading Capacity
    2000kg/2500kg
  • Motor Power
    11-15kW
  • Lifting Speed
    15-25m/min
  • Sliding Motor Power
    0.2kW
  • Sliding Speed
    7.5m/min
  • Operation Mode
    Touch Screen / Push Button Or IC Card
  • Power Supply
    380V/50HZ 3 Phase 5 Wires
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Model Number
    PSH
  • Minimum Order Quantity
    5 piece
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

Mechanical Puzzle Car Parking System PLC Automatic Control

  • Mechanical Puzzle Car Parking System PLC Automatic Control
  • Mechanical Puzzle Car Parking System PLC Automatic Control
Get Price Contact Now

Multilevel mechanical puzzle parking system



Product features



Motor driven and roller chain or steel rope lifting system.

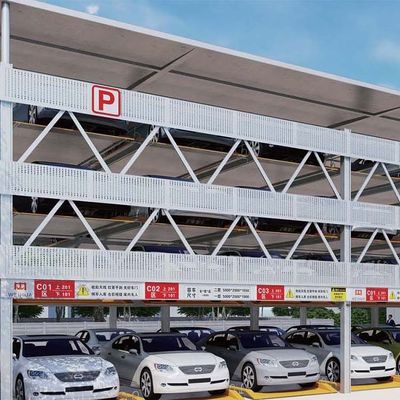

Space saving with multiple parking space, multi-layers (2-6 layers), except the top layer, each layer has a spare parking space and front-rear guide rails through which the platforms move horizontally. The platforms on the top layer can only move up and down and the ground layer can only movehorizontally and other platforms can move both horizontally and vertically to get continuous space shift. Multiple security protection device to prevent falling, collision and overload. Photo electric sensors to check and stop the unit when cars parked improperly or when persons cross in by accident .
Emergency stop push button mounted on operation panel as well.
PLC automatic control system. Push button, touch screen and IC for convenient parking and retrieving process.



Technical Parameters



品名(Product name)Mechanical puzzle parking system
容车尺寸(Vehicle Size)L:<5000<5000<5250
W:<1850<1850<2050
H:<1550<1800<1950
驱动方式(Drive Mode)电机+钢丝绳Motor driven + Roller Chain
举升电机功率/速度(Lifting motor capacity /speed)

2.2 Kw 每分钟8米(2/3 层)2.2 Kw 8 M / Min (2/3 levels);
3.7 Kw/ 每分钟2.6米(4/5/6层)3.7 Kw 2.6 M / Min (4/5/6 levels)

横移电机功率/速度(Sliding motor capacity /speed0.2 Kw每分钟8米8 M / Min
举升重量(Loading Capacity)2000 Kg2500 Kg3000 Kg
操作方式(Operation Mode)按钮,IC 卡,手动 Keyboard / ID card/ Manual
锁紧装置(Safety Lock)

电磁铁安全锁紧和防坠落装置
Safety lock device by electromagnetism and fall protection device

电源(Power Supply)220 V/380 Vf 50 Hz/60 Hz f 1 Ph / 3 Ph f 2.2 Kw


Characteristics

  • OEM service, it can be built according to the customer requirements and dimensions.
  • Complete safety protection functions
  • Simple and practical structure and appearance
  • Safe and fast operation
  • Low area coverage and high usage rate of space.
  • The layers and columns will be added to raise the number of cars according to the customer's requirements.
  • It may be designed with full-closed style to adjust the surrounding environment.
  • It operates steadily without noise and with fast operating speed and short parking and releasing time.
  • Multi-channels safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading


Main Structure


  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • Hydraulic system
  • PLC control system
  • Safe-guard system
