PSH Double Decker Mechanical Puzzle Car Parking System Lift Sliding

PSH Double Decker Mechanical Puzzle Car Parking System Lift Sliding

Products - Puzzle Car Parking System
  • High Light

    Mechanical Double Decker Parking System

    ,

    Double Decker Puzzle Parking System

    ,

    Lift Sliding Car Parking Garage PSH

  • Type
    PSH 2 Levels Mechanical Puzzle Parking System
  • Material
    Steel
  • Dive Mode
    Hydraulic + Chain
  • Car Size (LxWxH)
    5000*1850*2050(SUV)/1550(sedan)mm
  • Loading Capacity
    2000kg
  • Motor Power
    2.2kW
  • Lifting Speed
    8-12m/min
  • Sliding Motor Power
    0.2kW
  • Sliding Speed
    8m/min
  • Operation Mode
    Touch Screen / Push Button Or IC Card
  • Power Supply
    380V/50HZ 3 Phase 5 Wires
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE ISO9001
  • Model Number
    PSH
  • Minimum Order Quantity
    5 piece
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

PSH Double Decker Mechanical Puzzle Car Parking System Lift Sliding

  • PSH Double Decker Mechanical Puzzle Car Parking System Lift Sliding
  • PSH Double Decker Mechanical Puzzle Car Parking System Lift Sliding
Get Price Contact Now

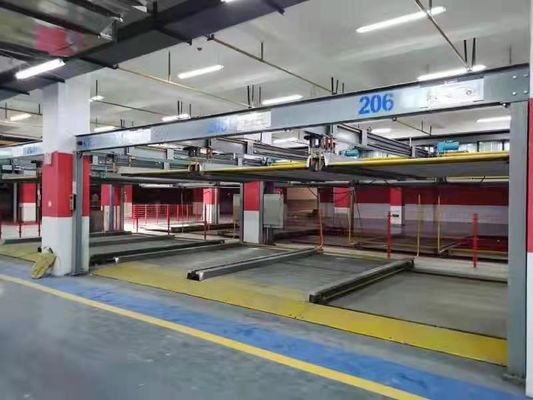

2 levels hydraulic puzzle car parking system​





Work Principle


There are 2 levels of upper and down spaces. The car can go into and out of the down level spaces directly by lifting and sliding movement. When the space in the ground level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.
Usually on ground or basement parking solutions.




Technical Parameters



Item Parameters
Product name 2 levels hydraulic puzzle car parking system​
Drive Mode Hydraulic chain drive
Levels of system 2
Size of car
(L*W*H)		 5000*1850*1550mm
5000*1850*2050mm
Car Weight 2000kg
Operation Mode Auto IC card/ Manual button
Lifting motor power 2.2KW
Lifting speed 8-12M/MIN
Sliding motor power 0.2KW
Sliding speed 8M/MIN
Control Method Touch screen / Push button or IC card
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
Safety devices Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection,
Malfunction indication Computer malfunction diagnosis, human-computer communication information display
Parts appearance
treatment		 Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and
out		 Forwarding in and forwarding out;




Characteristics

  • OEM service, it can be built according to the customer requirements and dimensions.
  • Complete safety protection functions
  • Simple and practical structure and appearance
  • Safe and fast operation
  • The front pillar can be removed for a convenience of going in and out.
  • PLC automated control design for easy maintenance and malfunctions removal easily
  • Low cost, easy maintenance
  • Simple demand of earthwork, Wide applicability, can be arranged and combined according to variety landform and extensity suitable for construction and reconstruction of up ground and underground garage



Main Structure



  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • Hydraulic system
  • PLC control system
  • Safe-guard system
