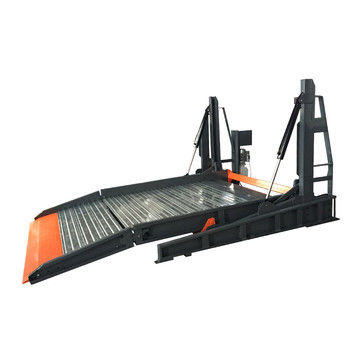

Hydraulic Mini Tilting Car Parking Lift 2.2kW 2000kg Loading

Hydraulic Mini Tilting Car Parking Lift 2.2kW 2000kg Loading

  • High Light

    Hydraulic Mini Tilting Car Parking Lift

    ,

    Tilting Car Parking Lift 2.2kW

    ,

    2000kg Loading Tilting Car Parking Lift

  • Type
    PJS Tilting Parking Lift
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Material
    Steel
  • Dive Mode
    Hydraulic
  • Certification
    CE ISO9001
  • Outer Size
    4100*2585*2100 (mm) Or Customized
  • Loading Capacity
    2000kg
  • Motor Power
    2.2kW
  • Mode Of Control
    Manual
  • Lift Time
    50S
  • Electricity
    220V 50HZ 1 Phase; 380V 50HZ 3 Phases 5 Wires
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PJS
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

Hydraulic Mini Tilting Car Parking Lift 2.2kW 2000kg Loading

Mini Hydraulic Space Saving Tilting Car Parking Machine

Characteristics

Tilting Parking Lift

Single-stage dual-cylinder lifting system.

Automatic lock & electric Lock release.

Posts with low height to suite low – ceiling garage.

Adjustable platform angle to park different Sedan Cars.

Balance shaft to ensure synchronous up & down movement.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


Advantages


1. First safety control with protective devices
1) Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.
2) Limited switch device to protect the equipment running.
3) Photoelectric switch (device for checking the entrance of people and vehicles) to prevent the people from accidentally entering into the equipment under operation.
4) Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.
2. Oil cylinder
Used cylinder reversal, have many advantages, not distortion, dustproof. Adopt Italy Aston Seal ring.
3. Adjusting lifting height, the maximum lifting height can be 1800mm for 2000KG car.
4. Lifting capacity can be 2000kgs;
5. Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall;
6. Low noise, smooth operation, save energy, low carbon and environmental protection;
7. Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow polluting the lower vehicles;
8. Structure all adopts layer cutting, attractive appearance, easy installation, less malfunctions, easy maintenance.
9. Plastic spraying high quality coating, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics;
10. Simple structure, easy installation, minimal requirements for civil engineering;
11. Certifications: CE



 Drawing



Hydraulic Mini Tilting Car Parking Lift 2.2kW 2000kg Loading 0


Technical Parameters



Lifting Capacity 2000 Kg
Lifting Height 1600 mm
Overall Height 1848 mm
Overall Width 2585 mm
Drive Through 2100 mm
Rise/Drop Time 50 S / 40 S
Parking Quantity 2 cars
Operation Mode Automatic/Manual
Temperature -20---45 ℃
Lock Release Electric Unlock
Installation Space 5295*2750*2094 mm
Power Supply/Motor Capacity 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
OR according to customers' request


Project case


Hydraulic Mini Tilting Car Parking Lift 2.2kW 2000kg Loading 1
