2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs

2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs

  • High Light

    2000kg Vertical Rotary Parking System

    ,

    7 floor Vertical Rotary Parking System

    ,

    8 cars automated parking garage system

  • Type
    Parking System
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Drive
    Motor
  • Warranty
    5 Years
  • Product Name
    Rotary Parking System
  • Color
    Customized
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PCX
  • Minimum Order Quantity
    1 unit
  • Price
    to be negotiated
  • Packaging Details
    standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    50 unit per month

2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs

PCX- Space Saving 5-7 Floor Fully Automated Vertical Rotary Parking System



What is rotary parking system?

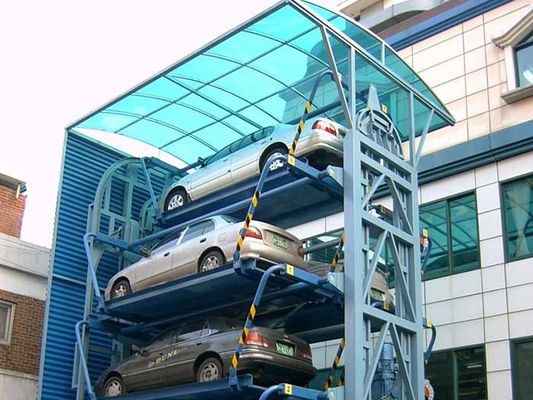

Rotary parking system is a kind of circular parking equipment similar to the carousel, access vehicles through all the rotation of the platform, there are generally 8 parking spaces,10 parking spaces,12 parking spaces and other types.



2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs 0



Product Details



2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs 1



    Rotary parking system is one of the most space-saving systems that allows you to park up to 16 SUVs or

    20 sedans in only 2 conventional parking spaces. The system is independent, no parking attendant is required.

    By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically

    and find the faster path to deliver  your vehicle down to ground either clockwise or counterclockwise.





Product advantages



  • Don't need a large area, save space and only need to take up the area of 2 parking spaces;
  • Suitable for all types of vehicles;
  • Easy to operate, no vibration noise;
  • Fast operation speed, short access time;
  • Standardized mechanism design, smooth opetation, safe the reliable;
  • Equipped with safety protection device and emergency stop device, safer to access the vehicle;
  • Equipped with photoelectric detection, program control, automatic access vehicles, can be unattended management;
  • One-time investment, long-term benefit;
  • Quick and simple installation(standardized products, 3-7 days to complete the installation of your parking system).





Technical parameters



Item Parameters
Type Vertical Rotary
Levels of system 5
Paring Spaces 8
Size of car
(L*W*H)
5300*1900*1550mm
5300*1900*1950mm
Car Weight 2000kg / 2350kg
Drive motor 5.5kw
Rotating Speed 4.4m/min
Parking time 60S
Drive Mode Motor + Chain
Control PLC type (basic)
Control Method Touch screen / Push button or IC card
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
Safety devices 1.Car block device (Positioning)
2.Operation warning device (Warning light)
3.Car position detection device (Over length, over width detection)
4.Malfunction warning device
5.Man or car mistake entrance detection (Photoelectric switch protection devices);
6.Emergency brake device when electricity cut off;
7.Over current flow protection device
8.Key switch against wrong operation;
9.Wrong phase, shortage phase protection, motor over loading protection device;
10.Emergency stop button;



Dimensions



2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs 2





Main Structures

Rotary parking system is composed of 7 basic structures
Foundation, Steel structure, Pallets, Transmission, Control System, Safety Protection Devices and other Auxiliary Devices;





2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs 3



Safety characteristics





2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs 4

2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs 5



Maintenance



To ensure proper and stable fuction of entire parking system in the long run, regular and periodic inspection & maintenance

are also of vital importance:



2000kg Vertical Rotary Parking System 7 Floor 8 Cars SUVs 6
