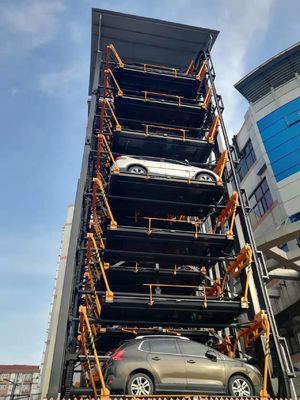

PCX-Space Saving Short Car Access Time 12 SUVs Vertical Rotary Parking System
Description
Rotary parking system is a kind of circular parking equipment similar to the carousel, access the vehicle by rotating all the carrying plate, there are generally 8 parking spaces,10 parking spaces,12 parking spaces and other types.
Vertical circulation stereo garage is suitable for the narrow space of the old-fashioned residential area. This kind of equipment only needs an area of 2 parking spaces, 5m wide and 6m long that can solve the parking problem of 8-12 parking Spaces. Each garage is limited to vehicles of the same height. For example: SUVs and Sedans have different height, so the equipment height are required to be also different, and the type of vertical rotary parking equipment used is also different.
Working Principle
Each space has a car pallet, the pallets for parking or retrieving will rotate along a direction to realize the parking or retrieving space to the ground; Driver can park or get the car directly in the ground space;
Steps: All cars will rotate along the clockwise or anti-clockwise until the car get to ground; For example in the following picture show, if we want to get the top car, all the cars rotate along anti-clock direction; The top pallet car falls to the ground and driver can take it away directly;
Characteristics
Main Structures
Rotary parking system is composed of 7 basic structures
Foundation, Steel structure, Pallets, Transmission, Control System, Safety Protection Devices and other Auxiliary Devices;
Technical parameters
| Item | Parameters |
| Type | Vertical Rotary |
| Levels of system | 7 |
| Paring Spaces | 12 |
| Size of car (L*W*H) |
5300*1900*1550mm 5300*1900*1950mm |
| Car Weight | 2000kg |
| Drive motor | 9.2kw |
| Rotating Speed | 4.7/min |
| Parking time | 80S |
| Drive Mode | Motor + Chain |
| Control | PLC type (basic) |
| Control Method | Touch screen / Push button or IC card |
| Parking way | Forward in, Back out |
| Electricity | 3 phases 5 wires, 380V, 50HZ |
| Safety devices | 1.Car block device (Positioning) 2.Operation warning device (Warning light) 3.Car position detection device (Over length, over width detection) 4.Malfunction warning device 5.Man or car mistake entrance detection (Photoelectric switch protection devices); 6.Emergency brake device when electricity cut off; 7.Over current flow protection device 8.Key switch against wrong operation; 9.Wrong phase, shortage phase protection, motor over loading protection device; 10.Emergency stop button; |
FAQ
Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.
Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.
Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.
Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.
Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: How to repair and maintain the product?
A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.
Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?
A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.
Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
Our products are sold all over the world, you can rest assured.
