PJS Independent Car Parking System

PJS Independent Car Parking System

  • High Light

    PJS independent car parking system

    ,

    wire rope independent car parking system

    ,

    two levels two post car lift

  • Type
    PJS
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Material
    Steel
  • Dive Mode
    Motor+ Rope Drive
  • Certification
    CE ISO9001
  • Loading Capacity
    2000kg
  • Motor Power
    2.2kW
  • Rated Speed
    2m/min
  • Mode Of Control
    Button/manual
  • Lifting Height
    2000mm
  • Operation Mode
    Button
  • Power Supply
    380V/50HZ 3 Phase 5 Wires/220v Single Phase
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PJS
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

PJS Independent Car Parking System

Description

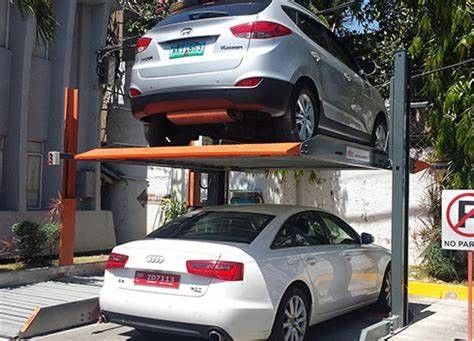

This parking system is designed two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.



Motor + Rope drive design is independent lift with faster speed and safe control. It can be widely used in hotels, enterprises and public institutions and residential area. saving land area, full use of space, property rights;



Mini mechanical parking lift is also known as household stereoscopic garage, it is a mechanical parking system that uses the lifting of the car pallet to realize the multiplication of stereoscopic parking spaces.This kind of parking equipment has simple structure, compact, button control, simple and fast operation. According to the driving mode, it can be divided into motor drive and hydraulic drive. The equipment is suitable for the construction of outdoor square, basement, small villa residence, etc., mostly used in private homes, enterprises and public institutions, basement and other scenes.





​Characteristics



  • Save land area and take full use of the current space to raise the number of parking cars.
  • The structure is simple, united and easy for operation.
  • It is equipped with multiple safety protection devices and space locked devices.
  • Easy installation and easy operation;
  • Suitable to dismiss and remove to other places;



PJS Independent Car Parking System 0





Adapted places


Family garage, Apartments, yards and lower height of basements areas;





PJS Independent Car Parking System 1

Technical Parameters



Item Parameters
Name Motor drive 2 post car parking lift
Model DMP
Equipment size: 5100*2476*3940
Minimum height with car(mm) 3940
Car size Top-5000*1850*1550 max
Ground-5000*1850*2050 max
Car weight 2000kg
Parking cars 2
Lift time 24S
Lift speed 4.5m
Motor power 2.2kw
Fall speed 4.5m
Mode of drive Motor + Steel rope
Mode of operation Button / Manual
Electrics 220v, single phase 50HZ; 380V, 3 phases, 50HZ;
Parking way Top-Forward
Ground-Forward / Back
Model D2P27
Parking Lift Dimensions 4810*2666*2084mm
Out package dimensions 4200*500*700
Max Car Weight 2700kg
Inner columns width 2350mm
Central column width 2454mm
Width between two outside columns 2555mm
Distance between drive boards 969mm
Total height 2084mm
Max Lifting Height 1800mm
Lifting Time 50S
Fall Time 60S
Motor 2.2kw
Mode of operation Manual Button
Mode of control Hydraulic + Chain
Mode of unlocking Manual
Electricity 50HZ, 220V, 1P/380V, 3P;
Noise 75dB, max
Packing size each unit 4200*630*630mm




PJS Independent Car Parking System 2
PJS Independent Car Parking System 3

PJS Independent Car Parking System 4


FAQ

Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.



Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.



Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.

Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.



Q: How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q: How to repair and maintain the product?

A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.



Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?

A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.

Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
