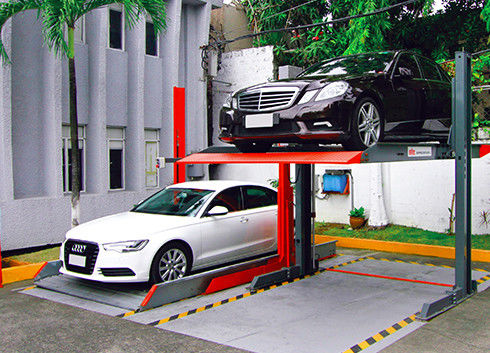

Motor Drive Residential Car Parking Lifts 2300kg Car Stacker Home Garage

Motor Drive Residential Car Parking Lifts 2300kg Car Stacker Home Garage

  • High Light

    2m/min Residential Car Parking Lifts

    ,

    Motor drive Residential Car Parking Lifts

    ,

    2300kg car stacker home garage

  • Type
    PJS
  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Material
    Steel
  • Dive Mode
    Motor Drive
  • Certification
    CE ISO9001
  • Loading Capacity
    2000kg
  • Motor Power
    2.2kW
  • Rated Speed
    2m/min
  • Mode Of Control
    Manual
  • Lifting Height
    2000mm
  • Operation Mode
    Button
  • Power Supply
    220v Single Phase 50HZ
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PJS
  • Minimum Order Quantity
    1 set
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

Motor Drive Residential Car Parking Lifts 2300kg Car Stacker Home Garage

What is household stereo garage?



  • Household stereo garage is a kind of mini mechanical parking system. It is different from the public stereo parking lot, the main object is private villas or private independent parking space.
  • According to the driving mode can be divided into hydraulic drive type and motor drive type.
  • According to the number of layers, it can be divided into 2 layers, 3 layers and 4 layers.
  • According to the number of columns can be divided into 2 columns, 4 columns.
  • According to the location can be divided into ground type and pit type.


Description



This parking lift is a kind of parking equipment which realizes parking by the lifting of the carriage pallet. It only has the lifting action, different from other stereo parking system.



It can be widely used in hotels, enterprises and public institutions and residential area. Column can be N+1 form, saving land area, full use of space, property rights;





Characteristics:



  • It is simple in structure, convenient in operation, easy to maintain and repair.
  • Short construction cycle, low construction cost, 2 sets of more than can use the common column design, cost saving.
  • For the ground type household stereo garage,  when the upper parking space needs to park a car, the car in the bottom should be driven away; The pit type does not require any parking space to be moved, but the civil construction cost is higher than the ground type.
  • Remote control can be used to control the lifting of the car board, it is convenient for car storage.



Advantages


1. First safety control with protective devices


1) Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.


2) Limited switch device to protect the equipment running.


3) Photoelectric switch (device for checking the entrance of people and vehicles) to prevent the people from accidentally entering into the equipment under operation.


4) Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.


2. Oil cylinder


Used cylinder reversal, have many advantages, not distortion, dustproof. Adopt Italy Aston Seal ring.


3. Adjusting lifting height, the maximum lifting height can be 1800mm for small SUV.


4. Lifting capacity can be 2300kgs;


5. Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall;


6. Low noise, smooth operation, save energy, low carbon and environmental protection;


7. Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow polluting the lower vehicles;


8. Structure all adopts layer cutting, attractive appearance, easy installation, less malfunctions, easy maintenance.


9. Plastic spraying high quality coating, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics;


10. Simple structure, easy installation, minimal requirements for civil engineering;


11. Certifications: CE





Motor Drive Residential Car Parking Lifts 2300kg Car Stacker Home Garage 0Motor Drive Residential Car Parking Lifts 2300kg Car Stacker Home Garage 1



Technical Parameters



Item Parameters
Name 2 post parking lift
Dimension 4100*2565*3000mm
Weight of parking car 2300kg
Rated speed 2m/min
Lifting height 2000mm
Total height 3010mm
Size of vehicle loading pallet 3948*2100mm
Motor 2.2kw
Warming devices Yes
Mode of operate Button
Mode of control Manual
Mode of drive  motor driving, chain balance
Electrics motor 220v single phase 50HZ
Package size 3800*950*920mm
weight 1000kgs
20' container 11 sets
40' container 22 sets
