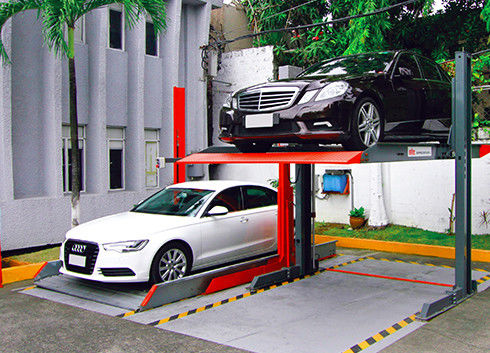

PJS 2 post two levels motor + chain drive linked car parking lift 2000kg home garage
Working Principle
This parking system is designed two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
Motor Chain drive design can be linked sharing columns, mostly in basement area or wider area with more parking cars requirements. Also can be widely used in hotels, enterprises and public institutions and residential area. saving land area, full use of space, property rights;
Characteristics:
Adapted places
Family garage, Apartments, yards and lower height of basements areas;
Technical Parameters
| Item | Parameters |
| Name | Motor drive 2 post car parking lift |
| Equipment size: | 4056*2350*3300 |
| Car size | Top-5000*1850*1550 max |
| Ground-5000*1850*2050 max | |
| Minimum height with cars | 3650mm |
| Total width of single row | 2650mm |
| Central to central width | 2350mm |
| Ground level height | 1800mm |
| Car weight | 2000kg |
| Parking cars | 2 |
| Lift time | 34S |
| Lift speed | 3.8m |
| Motor power | 2.2kw |
| Fall speed | 3.8m |
| Mode of drive | Motor + Chain |
| Mode of operation | Button / Manual |
| Electrics | 220v, single phase 50HZ; 380V, 3 phases, 50HZ; |
| Parking way | Top-Forward |
| Ground-Forward / Back |
FAQ
Q: Are you a factory or trading company?
A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.
Q: What is the warranty term of your product?
A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.
Q: How to make the installation? Can you send engineer to us?
A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.
Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.
Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: How to repair and maintain the product?
A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.
Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?
A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.
Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
Our products are sold all over the world, you can rest assured.
