Hydraulic Stacker Car Parking System Equipment Ground Side Moving

Hydraulic Stacker Car Parking System Equipment Ground Side Moving

  • High Light

    Hydraulic Stacker Car Parking System

    ,

    2000kg Stacker Car Parking System

    ,

    ground side moving car park equipment

  • Place Of Origin
    Shanghai, China
  • Brand Name
    ChangYue
  • Material
    Steel
  • Model Number
    PSH
  • Dive Mode
    Hydraulic, Motor + Wire Rope Or Motor + Chain
  • Certification
    CE ISO9001
  • Car Size (LxWxH)
    5000*1850*2050(SUV)/1550(sedan)mm
  • Loading Capacity
    2000kg
  • Motor Power
    4kW
  • Lifting Speed
    4-6m/min
  • Sliding Motor Power
    0.2kW
  • Sliding Speed
    8m/min
  • Operation Mode
    Touch Screen / Push Button Or IC Card
  • Power Supply
    380V/50HZ 3 Phase 5 Wires
  • Place of Origin
    China
  • Brand Name
    ChangYue
  • Certification
    CE
  • Model Number
    PSH
  • Minimum Order Quantity
    5 piece
  • Price
    to be negotiated
  • Packaging Details
    Standard export packing
  • Delivery Time
    30-60 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Unit per month

Hydraulic Stacker Car Parking System Equipment Ground Side Moving

The ground side moving stacker type parking equipment



Characteristics



  • Very save space, no longer need to lane, ramp, pavement... Fewer layers;
  • Simple to use: parking space automatically sent to the front of the driver;
  • The driver more comfortable: no longer use the parking lot and dark staircase, not in the narrow and steep slopes driving; Car safer: is not the risk of damage, theft and damage;
  • Fast running time: general under 2 minutes; Cost savings, reduce the use of civil engineering, air conditioning and lighting;
  • More environmental protection, reduce noise, emissions and land cover;
  • High automation level, fully enclosed construction, car security is good;
  • Using PC and PLC control system, to achieve automatic operation, accurate equipped with photoelectric detection, fall prevention device, safe and reliable use frequency control of motor speed, stable operation, reliable positioning, security, good site, size and space height, free to set the number of columns and layers, the maximum to meet customer needs to expand the parking space.
  • This type is mainly used for: longitudinal long three parking lots, and width of two or more parking area wide, occupies an area of 100 square above, should the car quantity for a rotary table for: width of N wider X2X layers



Main Structure



Elevator, swirl plate, plate type access smart handling device, vehicle access platform, parking equipment and control center.





Main Technical Parameters


Operating mode automatic/manual lifting speed (m/min) 30 longitudinal velocity (m/min) 60 transverse velocity (m/min) 16 lifting motor power (kw) 7.5-22 longitudinal power (kw) 0.75 x 2 horizontal motor power (kw) 0.55 AC 50 hz, 380 v power supply

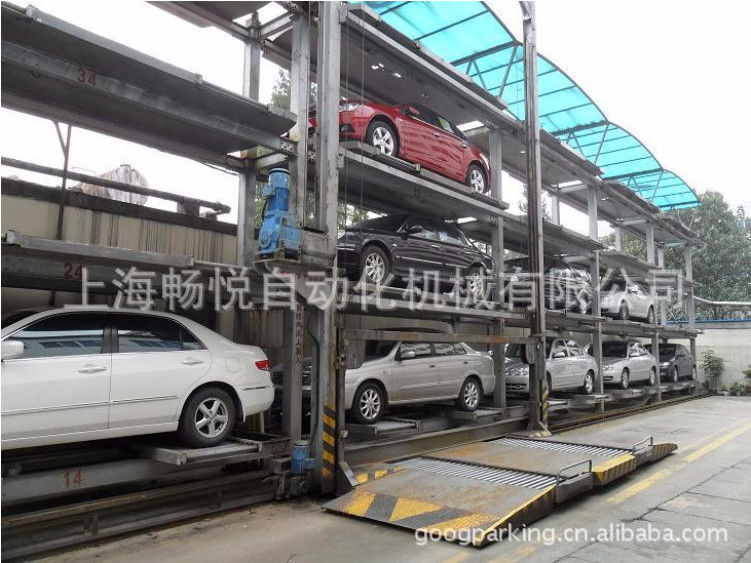

Project case
